AUTEL MaxiPRO MP900 KIT Diagnostic Tablet

Description

Introduction

The Autel MaxiPRO MP900 KIT is a wired 8-inch all-system diagnostic tablet supplied with non-OBD II adapters for supported vehicles. It is designed for vehicle fault finding, active tests, ECU coding and workshop service tasks.

Features

• All-system diagnostics for supported US, Asian and European vehicles from 1996 onward
• Wired vehicle connection with non-OBD II adapters included
• Smart AutoVIN identification and pre- and post-scan reports
• CAN FD and DoIP support

Diagnostic Functions

• Full-system scan
• Read Codes and Clear Codes
• Live Data and ECU Information
• Bidirectional Control / Active Tests
• ECU Coding and guided functions on supported vehicles
• Complete OBD diagnostics

Service Functions

40 service and maintenance functions are listed for the series. Named functions include:

• Oil reset
• Electronic parking brake (EPB) reset
• Steering angle sensor (SAS) reset
• Battery management system (BMS) reset
• Diesel particulate filter (DPF) service
• ABS bleeding
• Injector coding
• Supplemental restraint system (SRS) reset
• Crankshaft position sensor learning

Protocols & Technologies

CAN FD and DoIP are supported. The tablet also supports ISO 9141-2, ISO 14230-2, ISO 15765, SAE J1850 PWM/VPW and other listed vehicle protocols. The vehicle connection is wired; Wi-Fi is used for internet updates and data functions.

Hardware

8-inch, 1280 × 800 touchscreen; Android 11; 1.8 GHz quad-core processor; 4 GB RAM; 64 GB storage; 8 MP rear camera; 7700 mAh battery. USB Type-C, USB 2.0, Wi-Fi and mini SD connectivity are listed.

Software & Updates

One year of software updates is included with the device. Updates are delivered over Wi-Fi. To continue receiving updates after the included period, purchase a separate renewal.

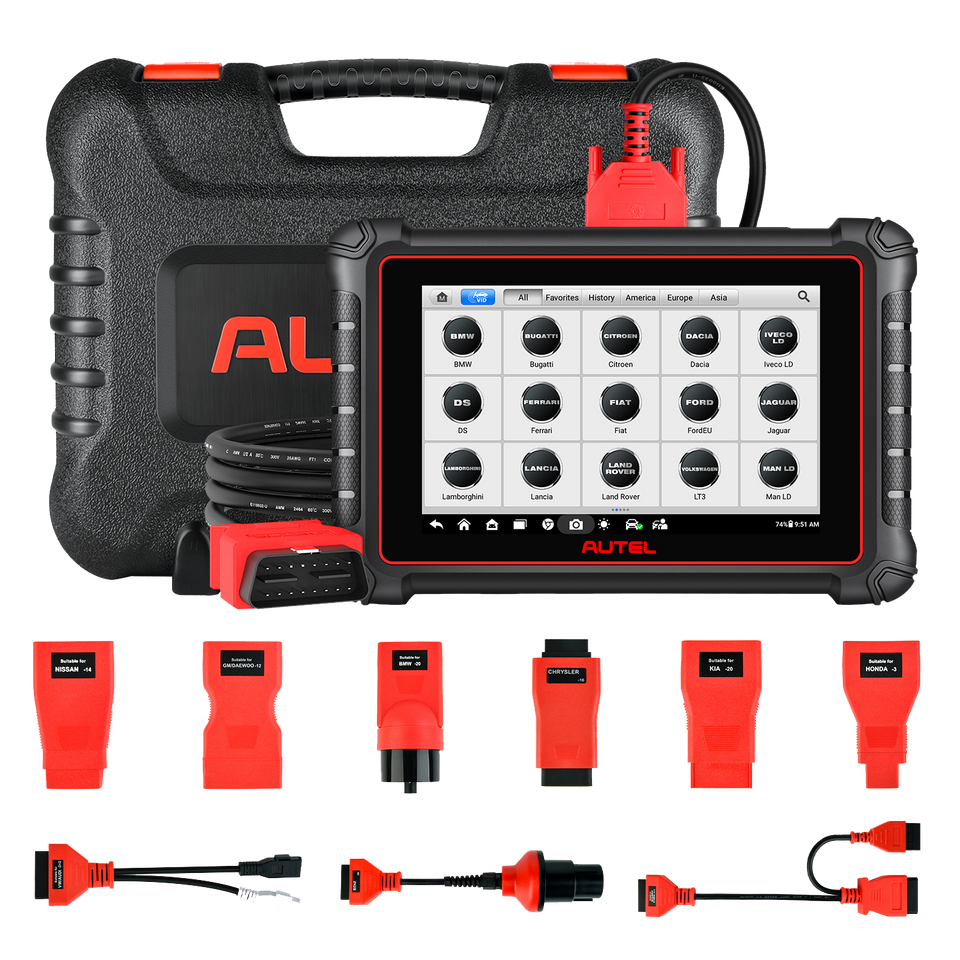

Package Contents

• MP900 tablet
• Main diagnostic cable
• Non-OBD II adapter kit
• Power adapter and USB Type-C cable
• Soft cloth, quick reference guide and packing list
• Carrying case

The exact non-OBD adapter selection can vary by market; verify the required vehicle connector before ordering.

Technical Specifications

• Display: 8-inch capacitive touchscreen, 1280 × 800
• Operating system: Android 11
• Processor: quad-core, 1.8 GHz
• Memory: 4 GB RAM / 64 GB storage
• Rear camera: 8 MP
• Battery: 3.7 V / 7700 mAh lithium-polymer
• Charging input: 5 V / 3 A
• Operating temperature: 0–50 °C
