Autel MaxiPRO MP900-TS Diagnostic & TPMS Tablet

Description

Introduction

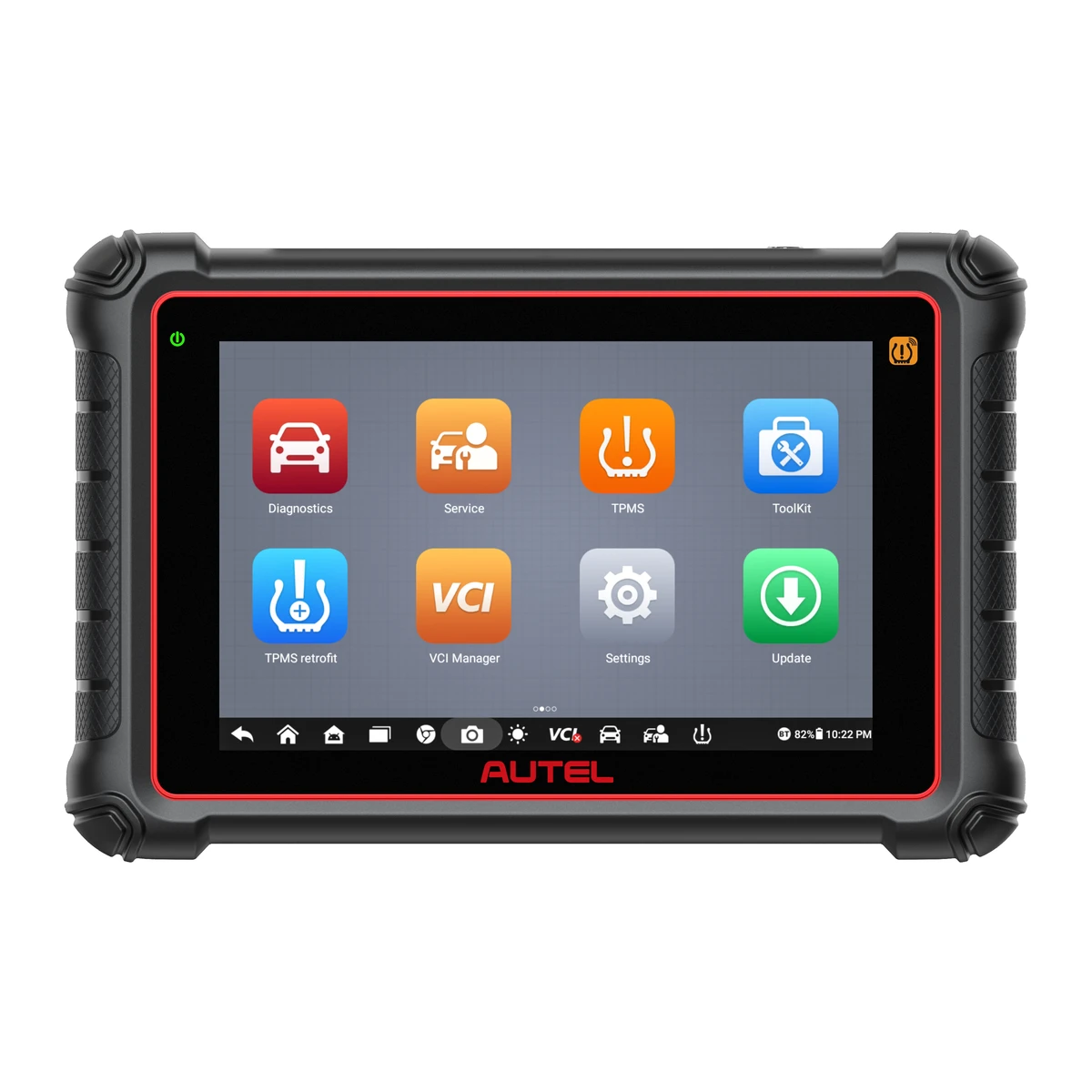

The Autel MaxiPRO MP900-TS combines an 8-inch full-system diagnostic tablet with comprehensive TPMS functions. The supplied MaxiVCI V150 provides wireless Bluetooth communication with supported vehicles.

Features

• Full-system diagnostics, AutoVIN and pre- and post-scan reports
• Bluetooth vehicle communication through MaxiVCI V150
• Advanced TPMS diagnostics, sensor activation, MX-Sensor programming and relearn
• CAN FD and DoIP support

Diagnostic Functions

• Full-system scan
• Read Codes and Clear Codes
• Live Data and ECU Information
• Bidirectional Control / Active Tests
• ECU Coding and guided functions on supported vehicles
• Complete OBD diagnostics

TPMS Functions

• TPMS fault-code diagnostics and sensor-status check
• Complete TPMS health check
• Activation of supported TPMS sensors
• Autel MX-Sensor programming
• OBD relearn coverage and on-screen relearn procedures

Service Functions

40 service and maintenance functions are listed for this model. Named functions include:

• Oil reset
• Electronic parking brake (EPB) service
• Battery management system (BMS) service
• Brake bleeding
• Injector coding
• Steering angle sensor (SAS) reset
• Throttle matching

Protocols & Technologies

Supported vehicle protocols include CAN FD, DoIP, ISO 9141-2, ISO 14230-2, ISO 15765 and SAE J1850 PWM/VPW. Bluetooth connects the MaxiVCI V150 to the tablet; Wi-Fi is used for software updates.

Hardware

8-inch 1280 × 800 touchscreen; Android 11; 1.8 GHz quad-core processor; 4 GB RAM; 64 GB storage; 8 MP rear camera; 7700 mAh battery.

Software & Updates

One year of software updates is included. To continue receiving updates after the included period, purchase a separate renewal.

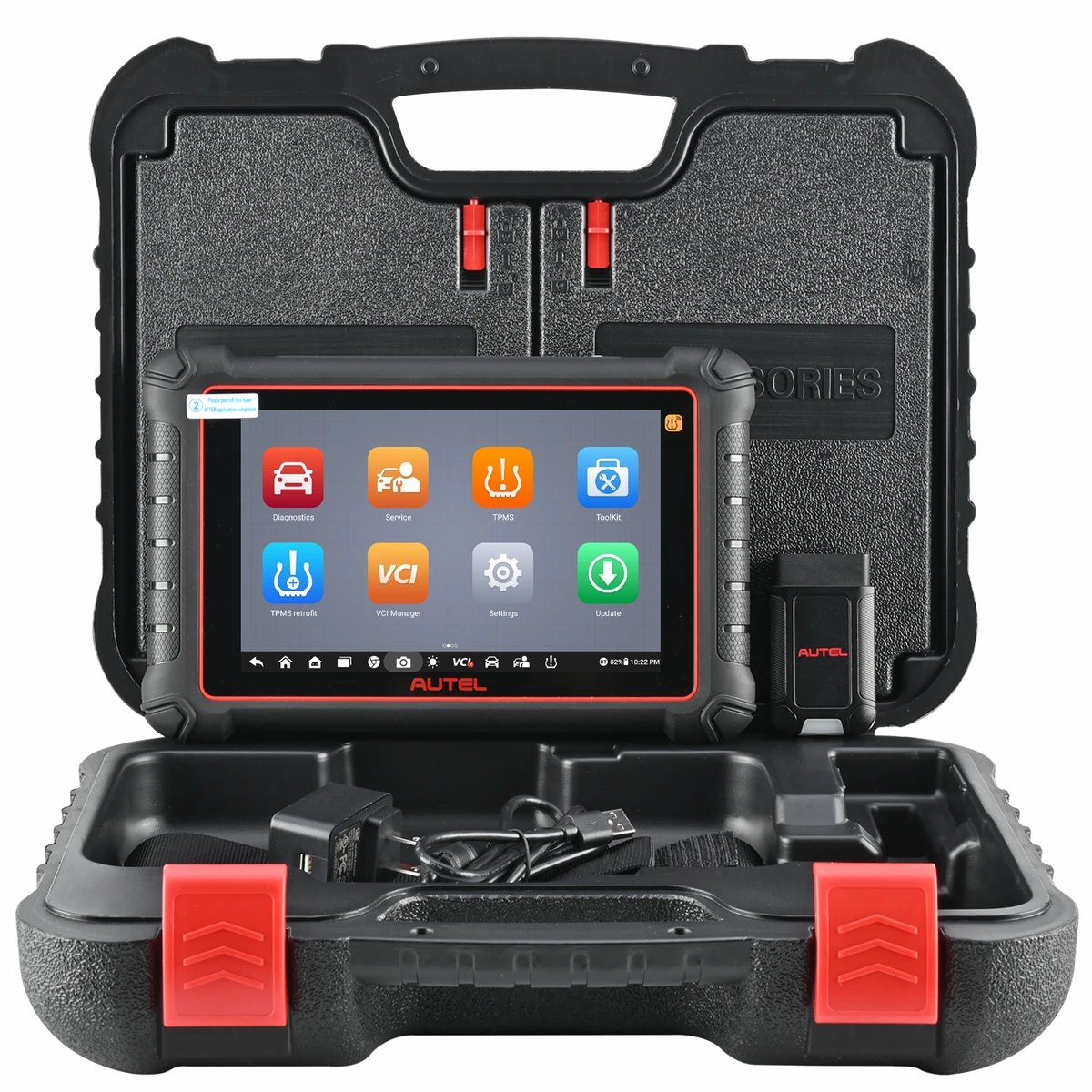

Package Contents

• MP900-TS tablet
• MaxiVCI V150
• Power adapter and USB Type-C cable
• Soft cloth, quick reference guide and packing list
• Carrying case

Technical Specifications

• Display: 8-inch capacitive touchscreen, 1280 × 800
• Operating system: Android 11
• Processor: quad-core, 1.8 GHz
• Memory: 4 GB RAM / 64 GB storage
• Rear camera: 8 MP
• Battery: 3.7 V / 7700 mAh lithium-polymer
• Charging input: 5 V / 3 A
• Operating temperature: 0–50 °C
