Description
Product Overview
This MK3 emulator replaces the electronic function of the Ford ESCL steering-lock unit on the listed CD4-platform vehicles. Match the blue four-pin connector and original lock reference before ordering.
Features
- Ford ESCL steering-lock emulation
- Lock-sound simulation
- Blue four-pin connector
- Plug & Play installation without programming
Compatibility
- Ford Mondeo MK5 — from 2014
- Ford S-Max MK2 — from 2016
- Ford Galaxy MK4 — from 2016
Original steering-lock reference: AV6N-3F880-Kx series with a four-pin connector.

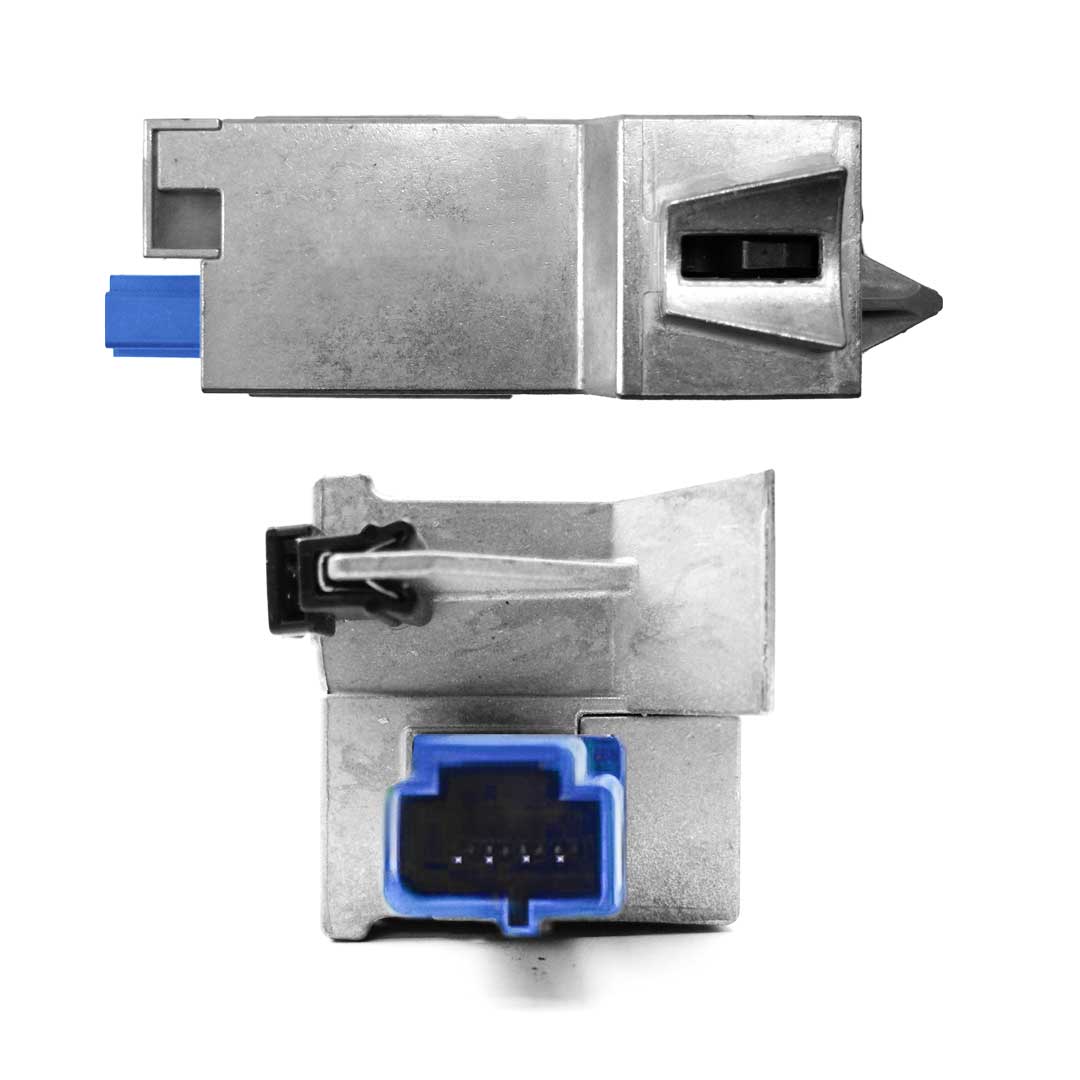

Original Lock Identification
Installation
- Switch off the ignition.
- Connect the vehicle’s original steering-lock connector to the emulator.
- Press the start button and check the green ready LED.
- If the red LED flashes, clear the fault with a suitable diagnostic tool.
Programming Requirements
No programming is required for the emulator. A diagnostic tool may still be needed to clear an existing vehicle fault.
Technical Information
| Emulator type | ESCL / ELV steering-lock emulator |
|---|---|
| Vehicle platform | Ford CD4 |

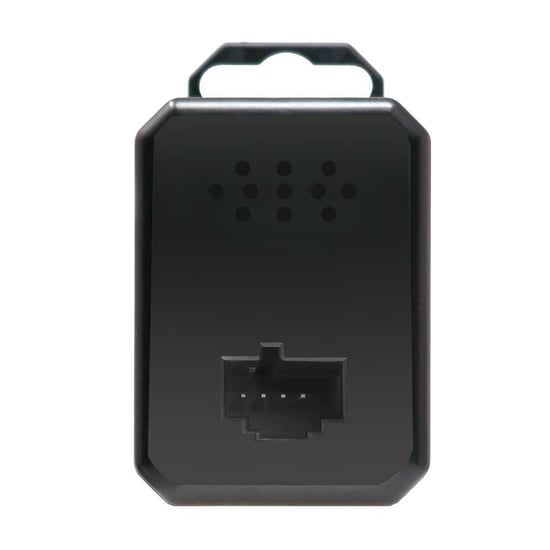

| Connector | Blue, four pins |
| Manufacturer code | MK17445 |
| Weight | 40 g |
