OTOFIX D1 Full-System Diagnostic Tablet

Description

Introduction

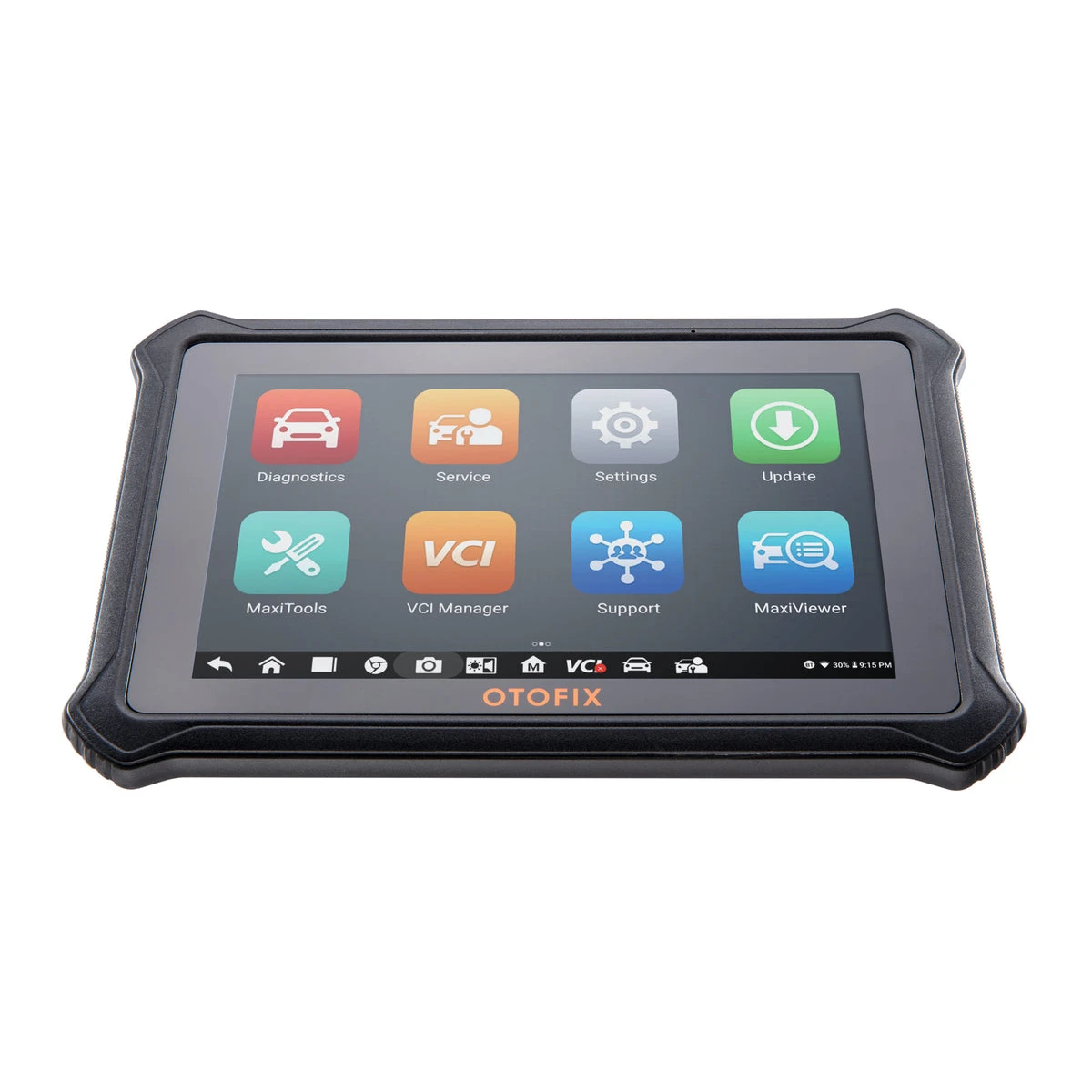

OTOFIX D1 is a 7-inch Android diagnostic tablet for multi-brand car diagnostics and service work. The supplied V1 vehicle interface connects the tablet to the vehicle.

Features

• AutoVIN vehicle identification
• 7-inch 1280 × 800 touchscreen
• Wireless vehicle communication through the supplied V1 interface
• Diagnostic report management through MaxiFix Cloud

Diagnostic Functions

• Full-system scan of available control modules
• Read Codes
• Clear Codes
• View ECU information
• View live data
• Bidirectional Control of supported actuators, valves and pumps
• Volkswagen/Audi guided functions where supported

Advanced Functions

Volkswagen/Audi online coding, online IMMO and hidden-function renewal are available for supported vehicles by separate subscription.

Service Functions

• Oil reset
• Injector coding
• Throttle reset
• DPF reset
• SCR reset
• Gear learning
• Clutch learning
• IMMO reset
• Suspension
• ABS bleeding
• EPB reset
• SAS reset
• WIN_DR_ROOF
• Seats
• LANG_CHANGE
• LIMIT
• ABSSRS
• CHG_TIRE_SIZE
• BMS reset
• Headlamp
• Airbag reset
• Turbo
• Cylinder
• A/F adjust
• TPMS reset
• ODOMETER

Specific service functions depend on the vehicle and its control units.

Vehicle Coverage

Use the separate Vehicle Coverage tab to check the exact vehicle and required function.

Hardware

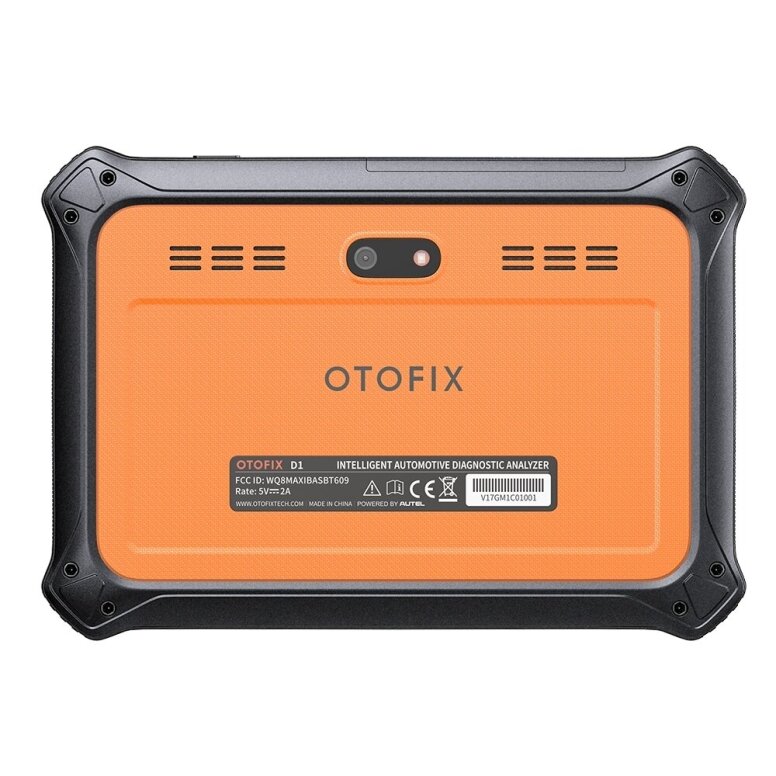

Android 9.0 tablet with 7-inch touchscreen, 2 GB RAM, 64 GB storage, 5800 mAh battery, 8 MP camera, USB Type-C, Bluetooth and Wi-Fi 5.

Software & Updates

OTOFIX diagnostic software is included with the device. Software downloads use an internet connection. Volkswagen/Audi online functions mentioned above require a separate subscription.

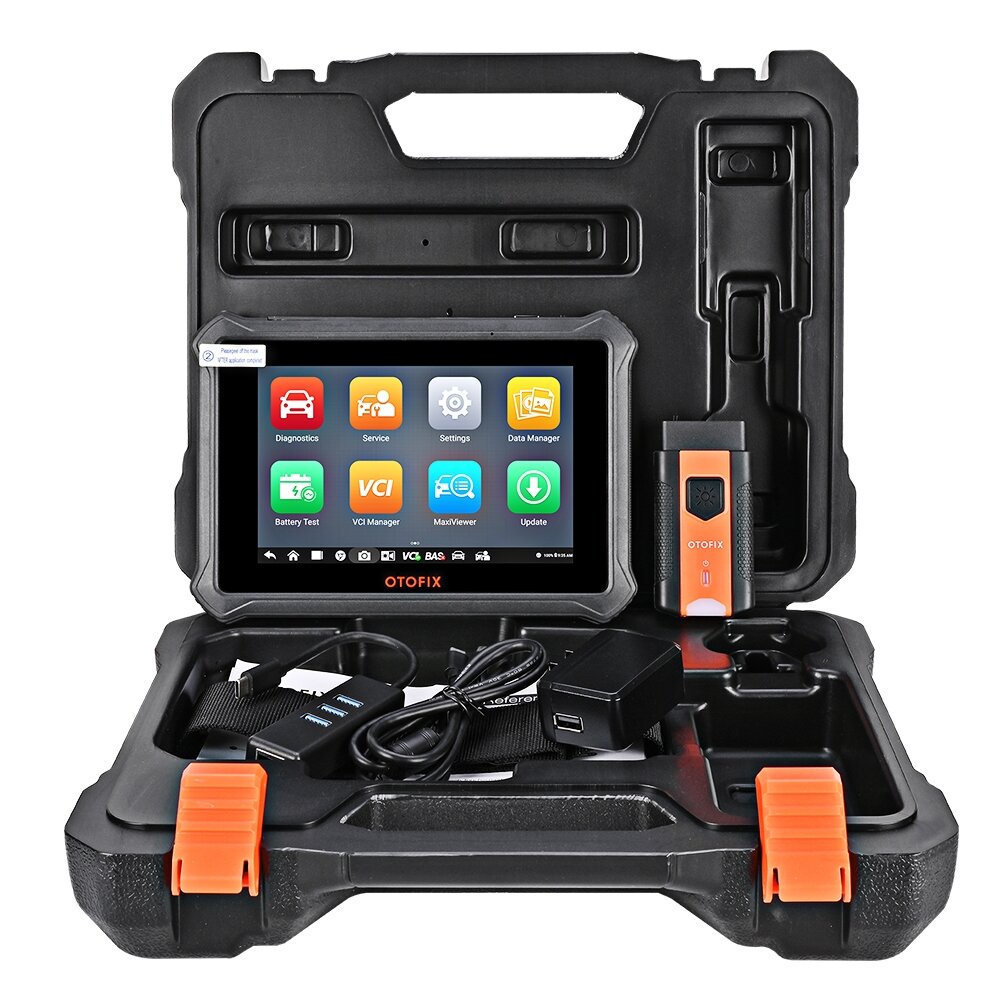

Package Contents

• OTOFIX D1 diagnostic tablet

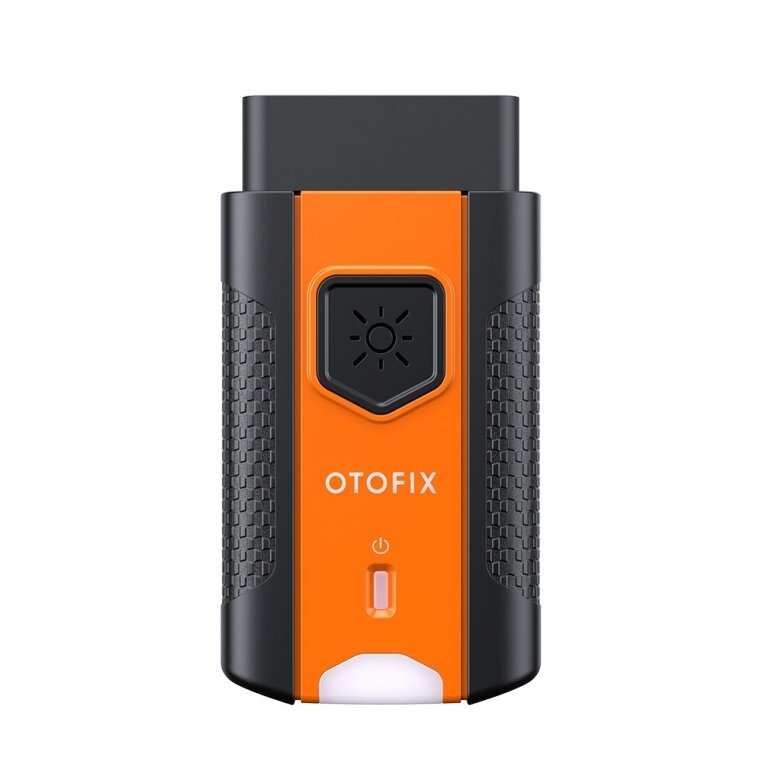

• OTOFIX V1 vehicle interface
• USB Type-C cable
• Power adapter
• USB hub
• Carrying case
• User documentation

Technical Specifications

• Processor: 4 × ARM Cortex-A35, 1.5 GHz
• Operating system: Android 9.0
• Memory: 2 GB RAM / 64 GB storage
• Display: 7-inch LCD, 1280 × 800
• Battery: 5800 mAh
• Camera: 8 MP
• Connectivity: USB Type-C OTG/Host, Bluetooth, Wi-Fi 5
• Vehicle interface: OTOFIX V1
