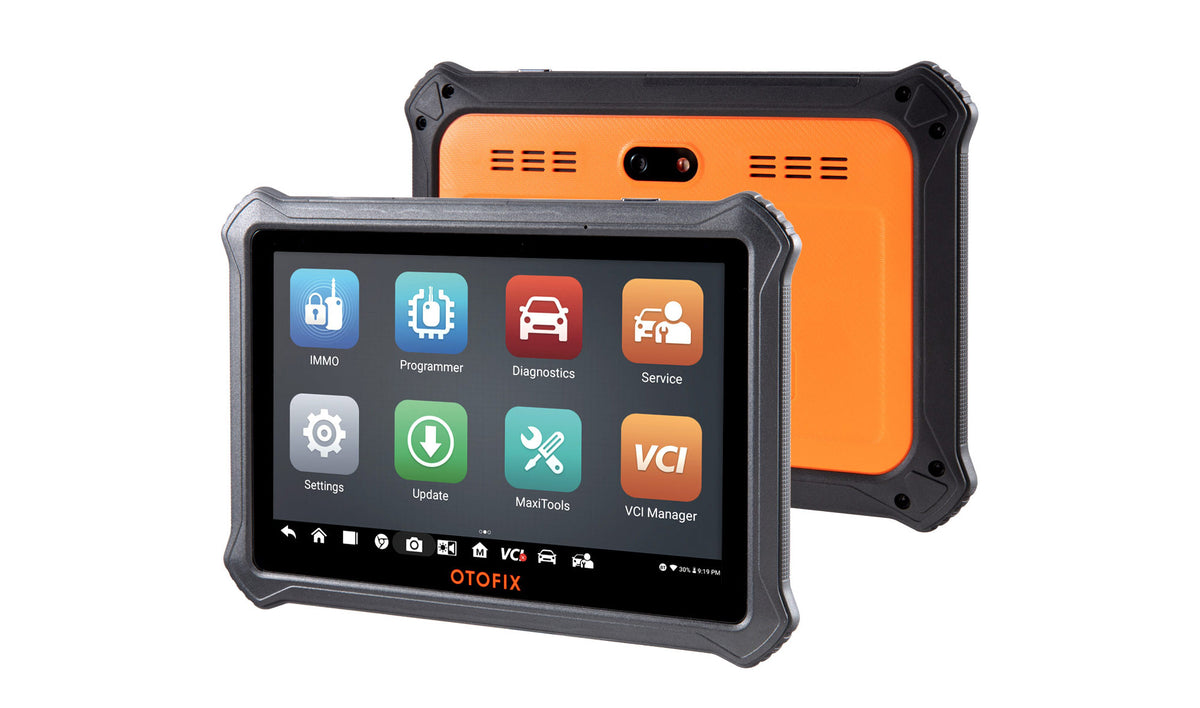

OTOFIX IM1 key programming tablet shown from front and rear

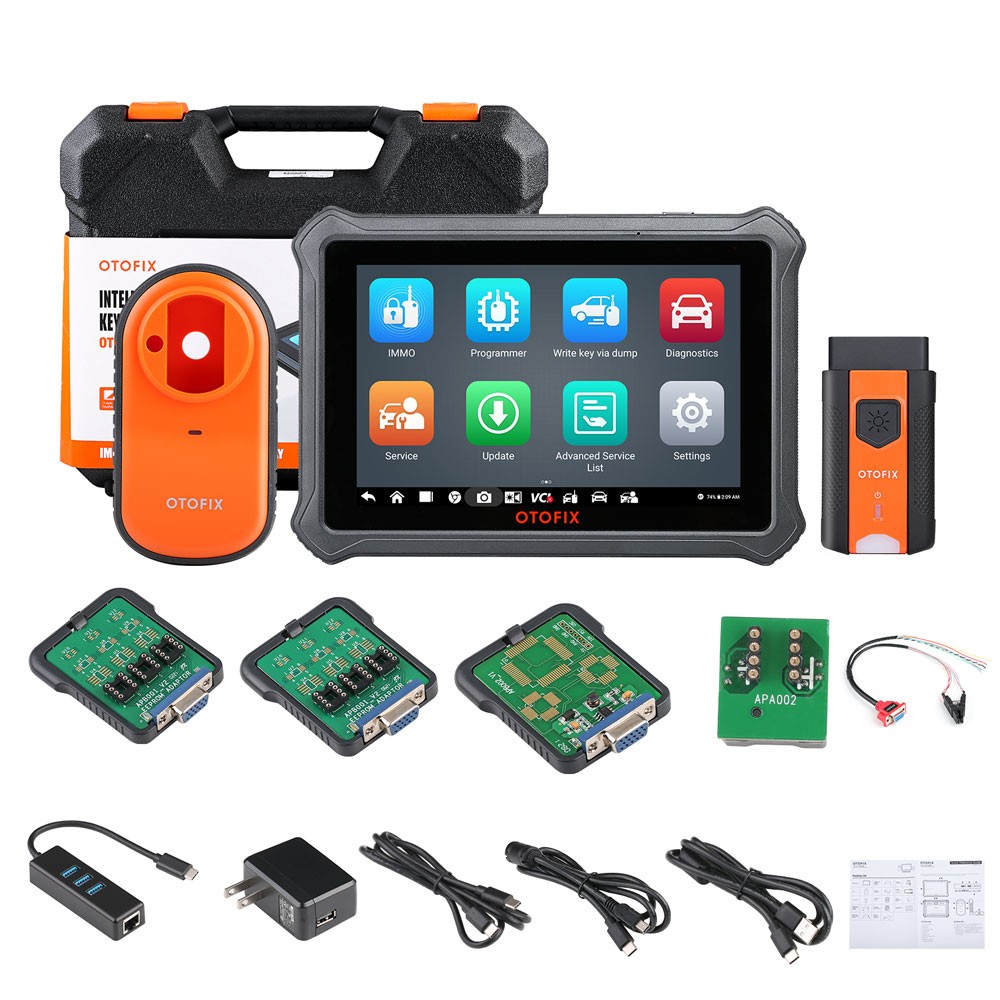

OTOFIX IM1 kit with tablet, XP1 programmer, V1 interface, adapters and cables

OTOFIX IM1 Key Programming Tool

1 089,00 €

OTOFIX IM1 is a 7-inch Android key programming tablet supplied with the XP1 programmer and V1 vehicle interface. It supports vehicle-dependent OBD key programming, immobilizer work and transponder or EEPROM operations. Full-system Diagnostics and Service functions require a separate active software subscription.

Available on backorder

Compatibility matters

Function availability can vary by vehicle model, year and control unit. Contact us before purchase if a specific function is essential.

Check compatibility on WhatsApp
SKU: SKU#176211339786230821 Category: Tags: , Brand:

Description

Introduction

OTOFIX IM1 is a 7-inch key programming tablet for automotive locksmiths. The supplied XP1 programmer and V1 vehicle interface support key and immobilizer work on compatible vehicles.

Features

  • Smart and Expert IMMO modes
  • OBD key programming for supported vehicles
  • XP1 transponder, EEPROM and MC9S12 MCU operations
  • Bluetooth V1 vehicle interface

Key & IMMO Functions

  • Add Key and All Keys Lost programming where supported
  • Read PIN or IMMO data on supported vehicles
  • Volkswagen IV, V and MQB IMMO key programming via OBD
  • BMW CAS1–CAS4 and FEM/BDC Add Key and All Keys Lost via OBD
  • Ford 2005–2020 key programming with supported PIN-bypass workflows
  • Hyundai/Kia key password reading for supported ID46, ID47, 4A and 8A systems
  • XP1 transponder read/write, key generation, on-board EEPROM read/write and Freescale 9S12 MCU read/write

Function availability depends on the exact vehicle, key type, security system and software coverage. Additional adapters may be needed for some procedures.

Diagnostics & Service

Full-system Diagnostics and Service functions are optional and require the separate OTOFIX Diagnostics and Service subscription. They are not included as active functions with the standard IM1 hardware package.

Vehicle Coverage

Use the separate Vehicle Coverage tab to check the exact vehicle and required key or IMMO function.

Connection & Technologies

V1 connects to the vehicle diagnostic port and communicates with the tablet by Bluetooth or USB. XP1 connects to the tablet by USB for supported transponder and chip operations.

Software & Updates

Key and IMMO software is used with the IM1. The optional Diagnostics and Service package must be purchased separately to access those functions.

Package Contents

  • OTOFIX IM1 tablet
  • OTOFIX XP1 programmer
  • OTOFIX V1 vehicle interface
  • EEPROM and MCU adapters shown in the kit image
  • USB cables and power adapter
  • Carrying case

Technical Specifications

  • Operating system: Android 9.0
  • Processor: quad-core ARM Cortex-A35, 1.5 GHz
  • Memory: 2 GB RAM / 64 GB storage
  • Display: 7-inch LCD touchscreen, 1280 × 800
  • Battery: 5,800 mAh
  • Rear camera: 8 MP
  • Connectivity: USB-C, Bluetooth and Wi-Fi

Additional information

Vehicle Type

Connection Type

, ,

Operating System

Equipment Type

Tablet
Vehicle Brand Coverage

Multi-Brand
Key Programming

Yes
IMMO Functions

Yes
OBD Mode

Yes
Model

OTOFIX IM1

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Vehicle Coverage

Open the official OTOFIX Vehicle Coverage database. Select IM1, choose the exact vehicle make, model and year, then check the required key, IMMO or diagnostic function.
