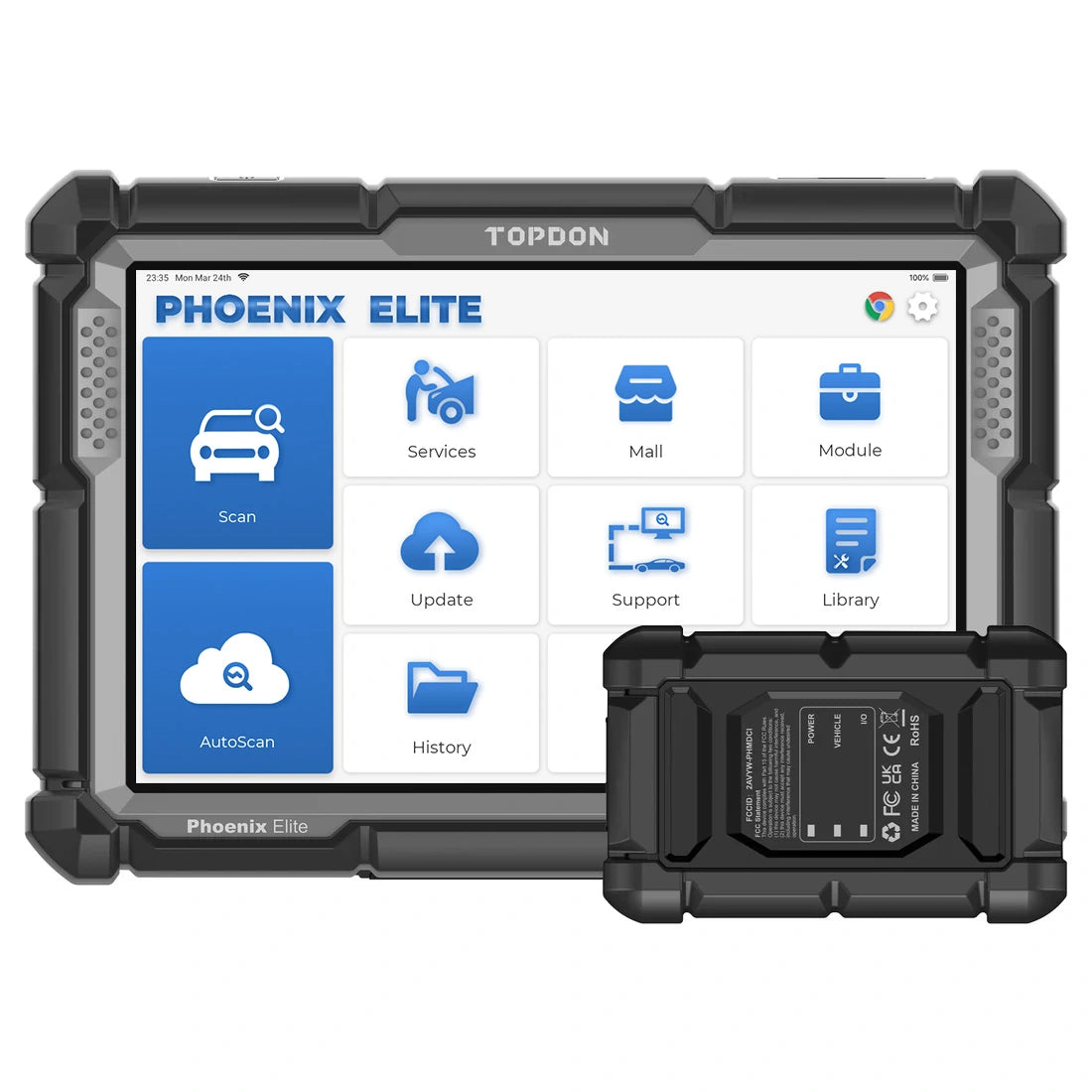

TOPDON Phoenix Elite Professional Full-System Diagnostic Tablet
The TOPDON Phoenix Elite is a professional OE-level diagnostic tablet with a 10.1-inch display, wireless vehicle interface and workshop-oriented diagnostic functions.
Features
- CAN FD communication
- Optional ADAS calibration capability with compatible TOPDON equipment and software

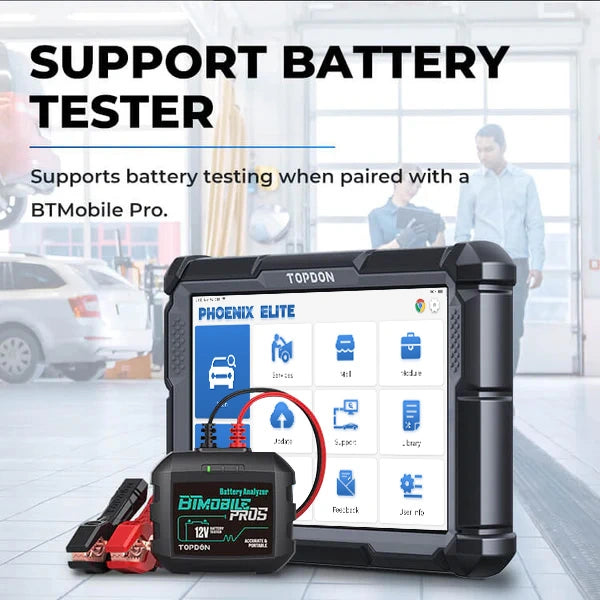

- Compatible supported battery-testing accessory
Diagnostic Functions
- Full-System Scan
- Read Codes
- Clear Codes
- Live Data
- AutoVIN
- Topology Mapping
- Bi-directional Active Tests
- Online ECU Coding on supported vehicles
- Guided Functions on supported VAG vehicles
- Pre-Scan and Post-Scan Reports
Service Functions
Maintenance, initialisation and memory-reset functions on supported vehicles. Availability depends on the exact vehicle and active software coverage.
Technical Specifications
| Display | 10.1-inch LCD touchscreen, 1280 × 800 |
|---|---|
| Processor | Quad-core, 2.0 GHz |
| Operating system | Android 10.0 |
| Memory | 4 GB RAM / 64 GB storage |
| Battery | 12,000 mAh / 3.8 V |
| Operating voltage | 9–18 V |
| Working temperature | 0 °C to 50 °C |
| Storage temperature | −20 °C to 60 °C |
| Dimensions | 278 × 191 × 48 mm |

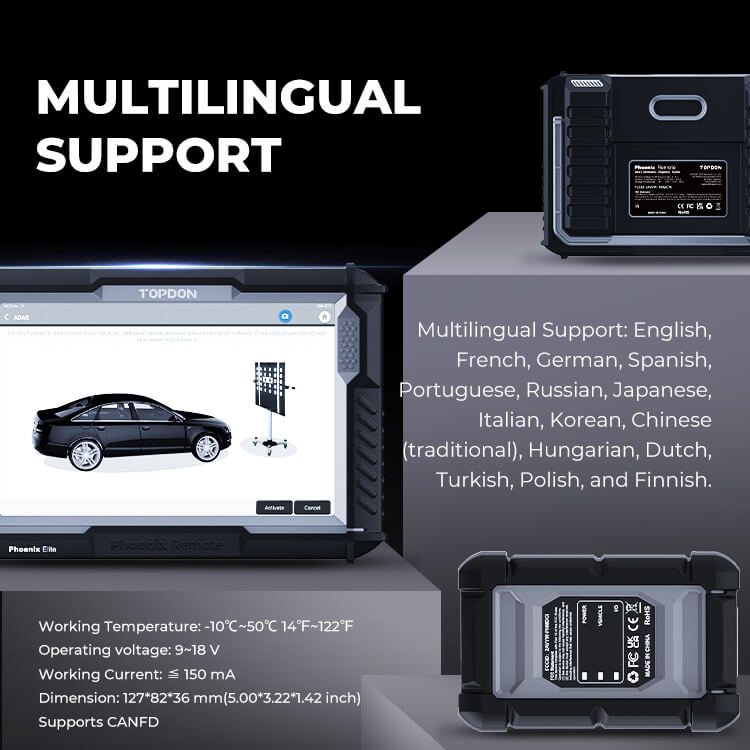

Phoenix VCI
| Operating voltage | 9–18 V |
|---|---|
| Working current | ≤150 mA |
| Dimensions | 127 × 82 × 36 mm |
| Modern protocol support | CAN FD |
Supported Languages
24 languages: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Traditional Chinese, Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish and Norwegian.
Software Updates
Includes 2 years of free software updates.
Package Contents
- Phoenix Elite tablet
- Phoenix MDCI VCI dongle
- OBD I adapter-box transfer cable
- OBDII extension cable
- Cigarette-lighter cable
- USB Type-C cable
- Battery clamps and cable set
- Power adapter
- User manual
- 10 non-16-pin adapter cables
- 4 × fuse (φ5 × 20 mm)
- 2 × fuse (φ6 × 30 mm)
- BMW F-Chassis programming cable
Important Information
Coverage, coding, active tests, ADAS and maintenance functions depend on the exact vehicle, model year, region, control unit, compatible optional equipment and active software coverage.
