TOPDON Phoenix Lite 3 Professional Full-System Diagnostic Tablet

Description

Introduction

TOPDON Phoenix Lite 3 combines full-system vehicle diagnostics with a wireless VCI, topology mapping and CAN FD support.

Features

• 8-inch Android 10 diagnostic tablet

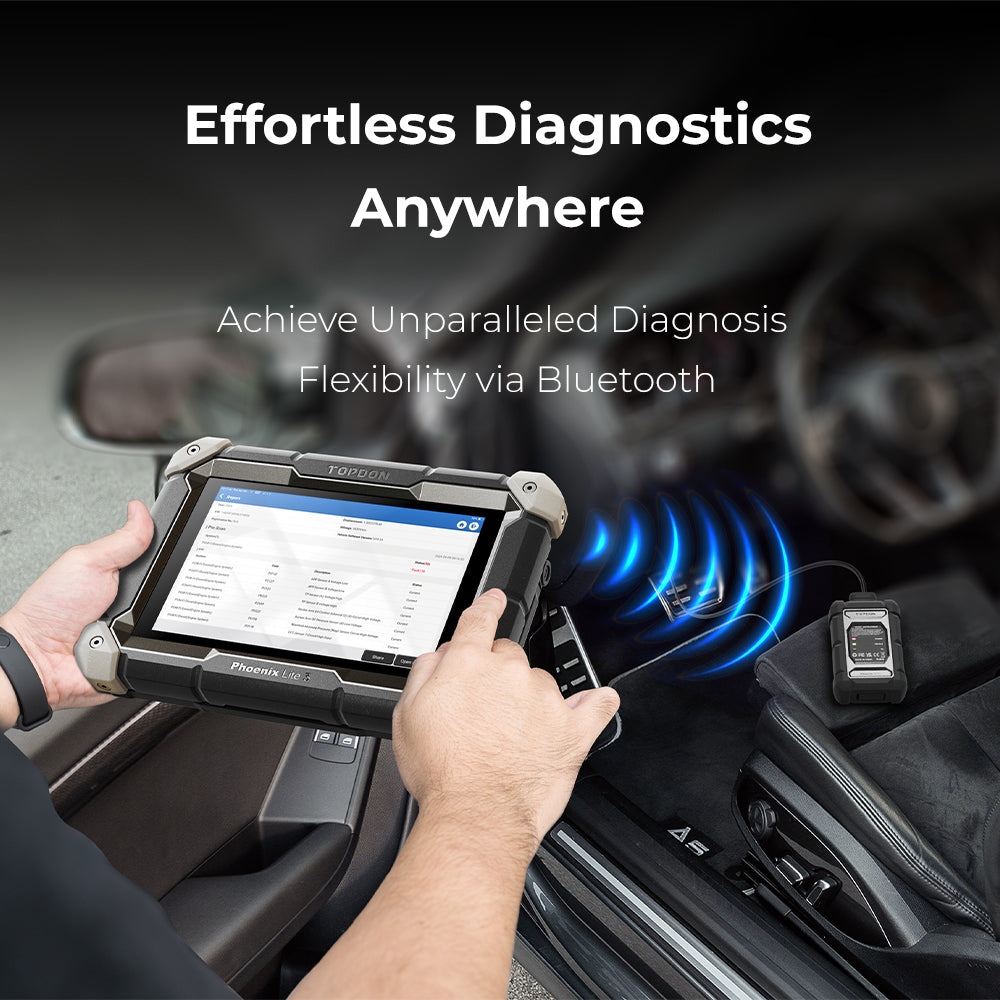

• Wireless VCI connection
• Full-system coverage for 168 vehicle makes and models
• 35 service functions
• Two years of software updates included

Diagnostic Functions

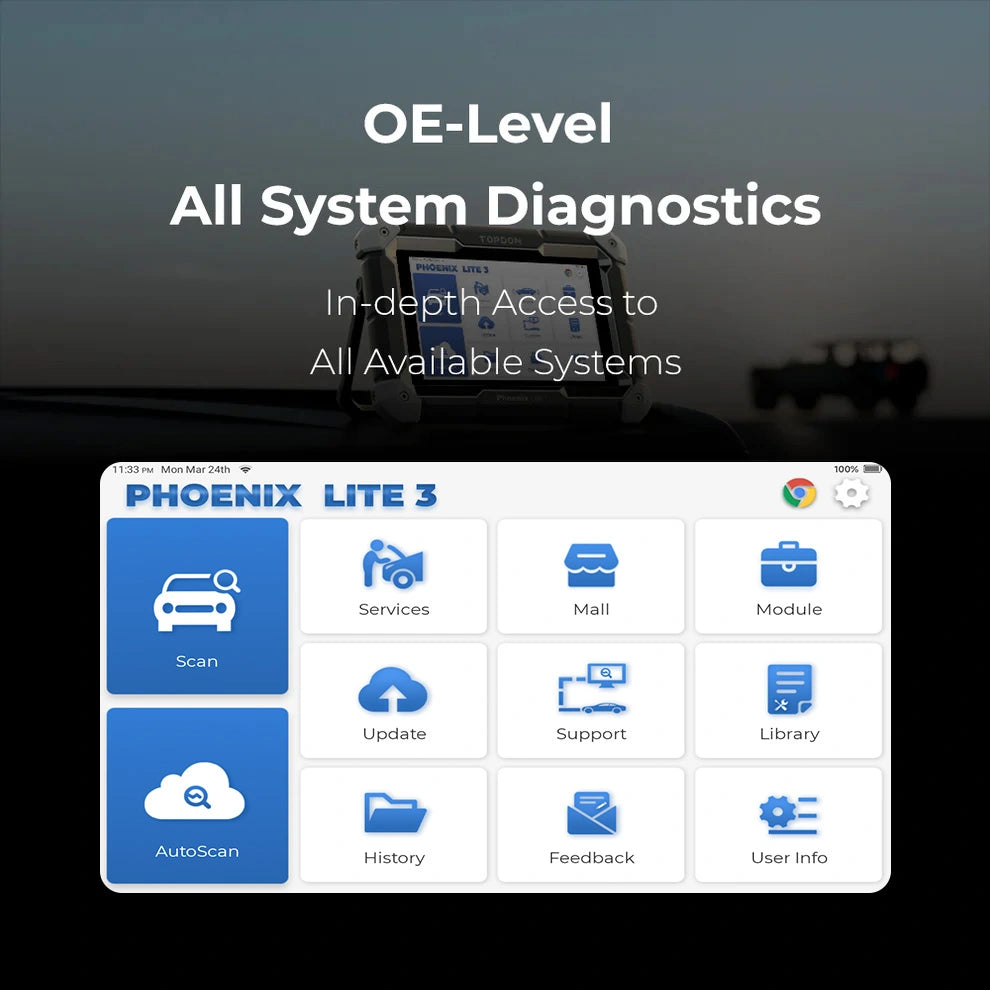

• Full-system scan
• Read Codes
• Clear Codes
• Live Data with comparison of up to four streams

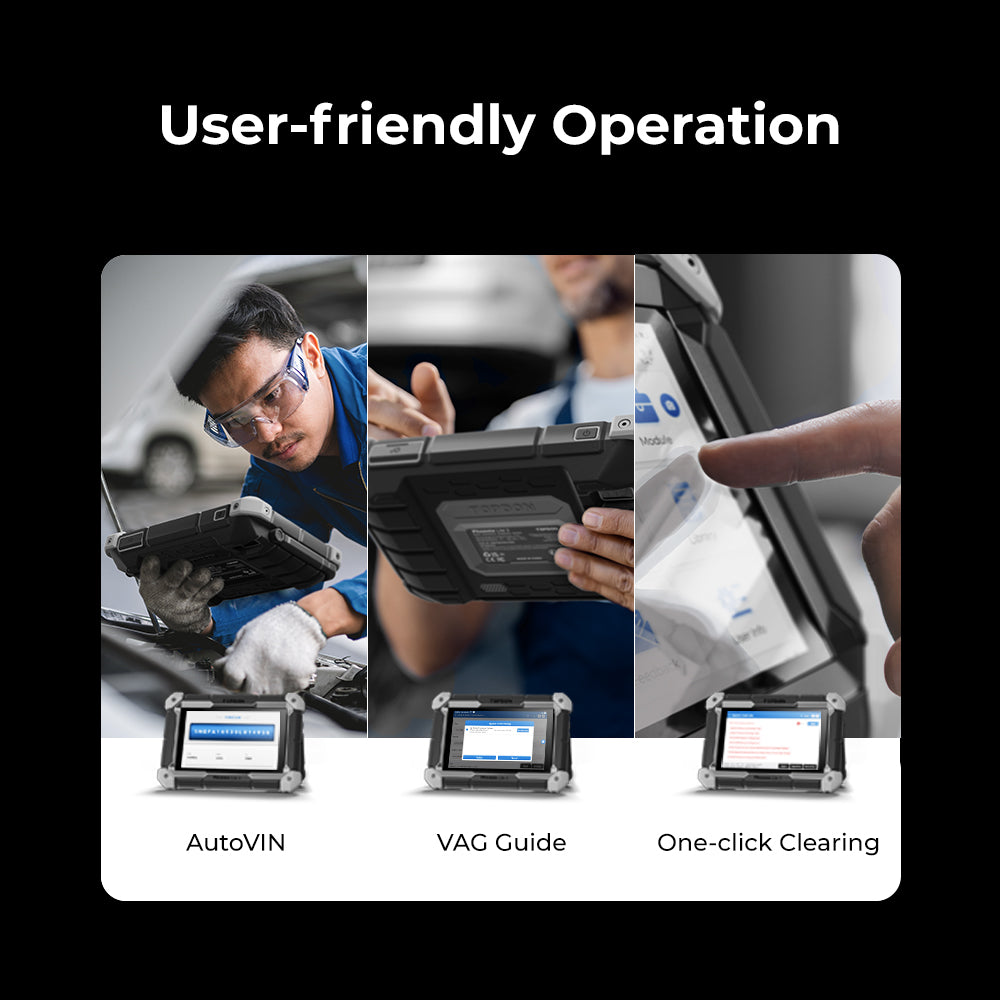

• AutoVIN

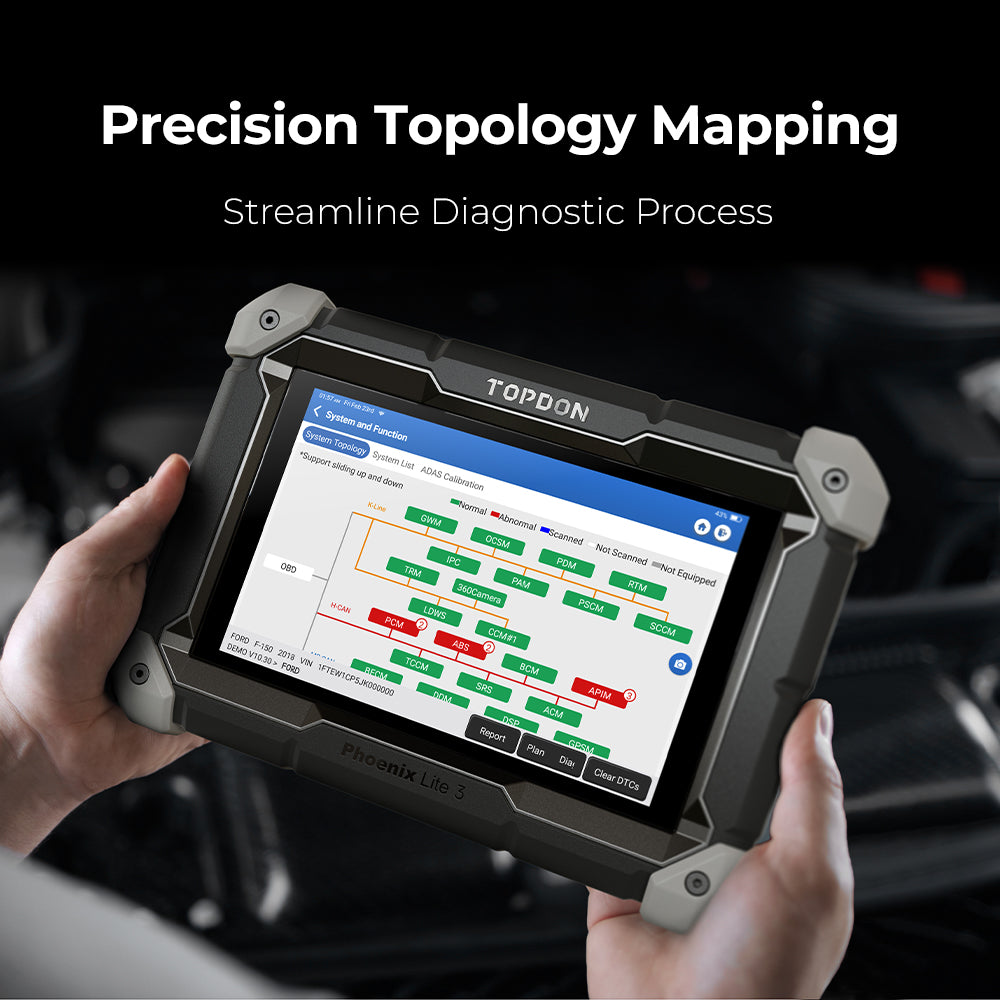

• Topology mapping

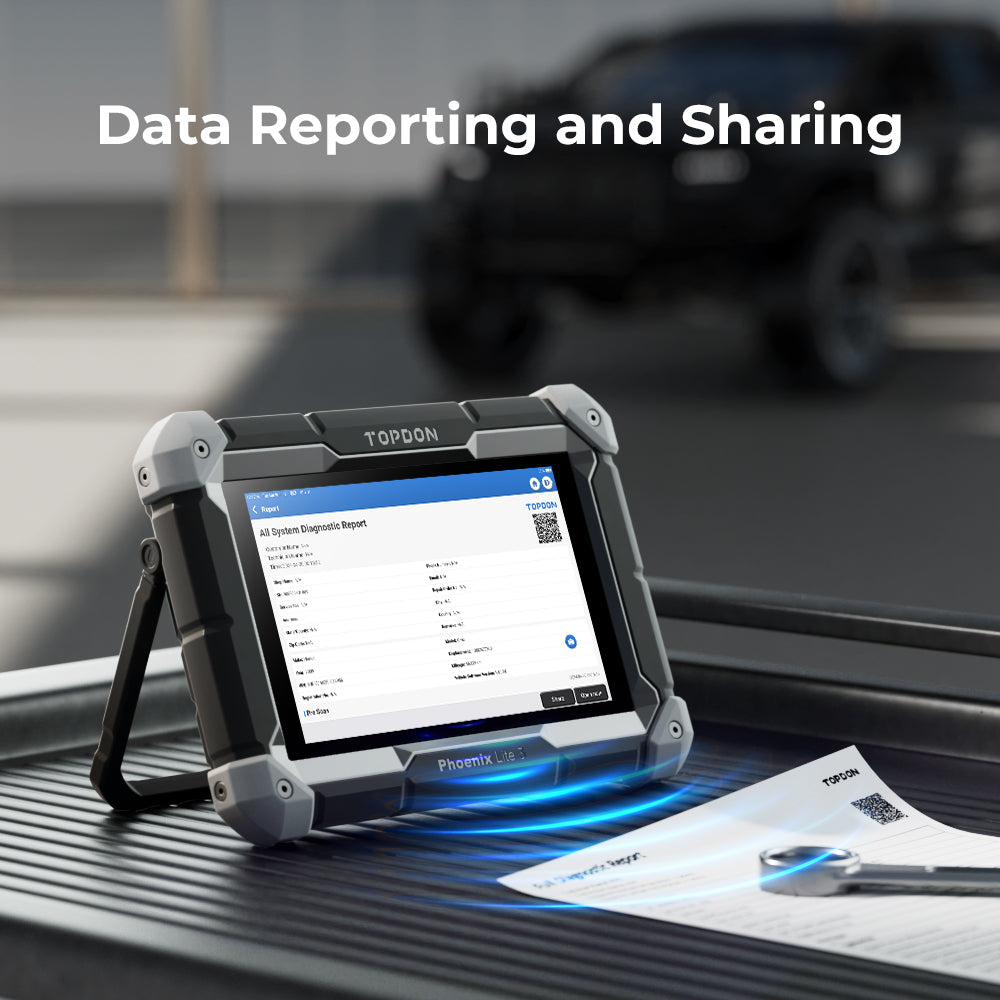

• Diagnostic reports

Advanced Functions

• Bidirectional Control / active tests

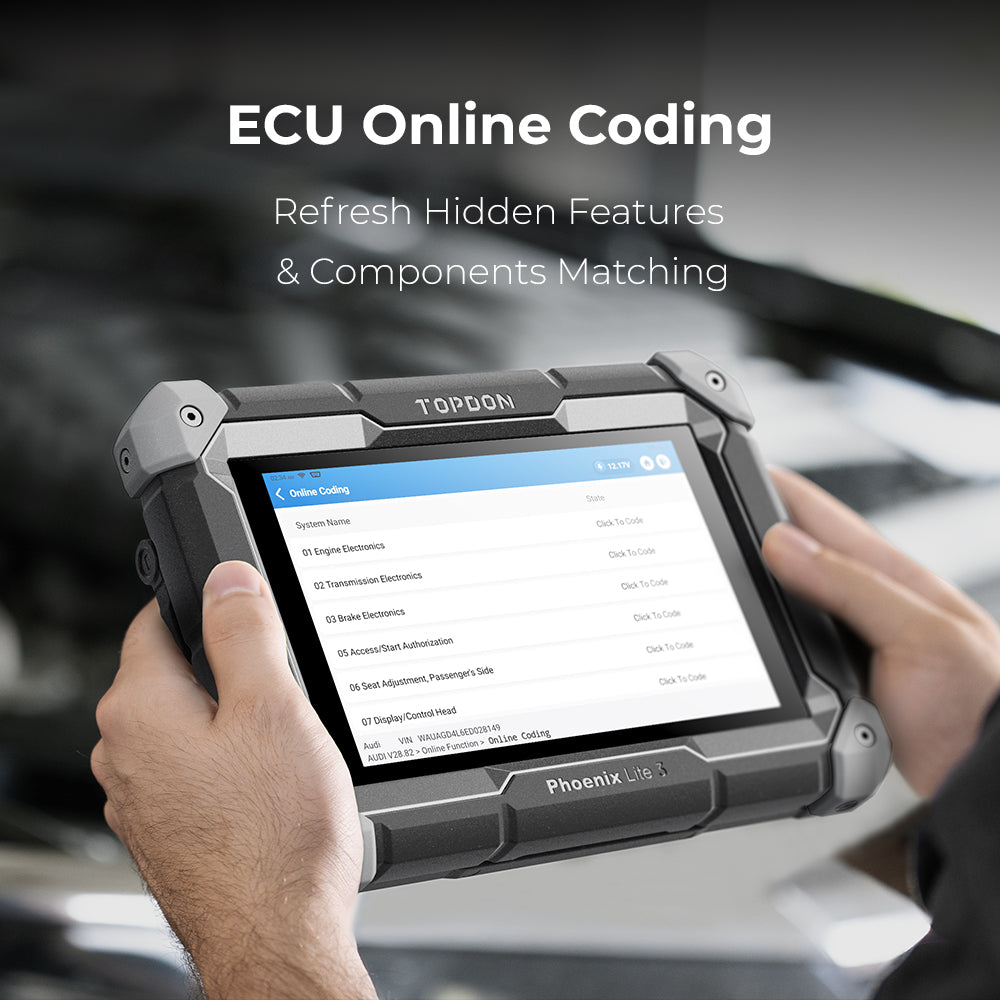

• ECU Coding on supported vehicles and control units
• FCA secure-gateway support where authorised
• VAG guided functions where supported

Service Functions

35 service functions, including:

• Oil Reset
• Brake Reset
• Electric Throttle Relearn
• TPMS Reset
• SAS Reset
• Battery Matching
• Suspension Reset

Individual service functions depend on the exact vehicle.

Vehicle Coverage

Full-system diagnostics for 168 vehicle makes and models. Available systems, coding and service functions vary by model, year and installed control units.

Protocols and Technologies

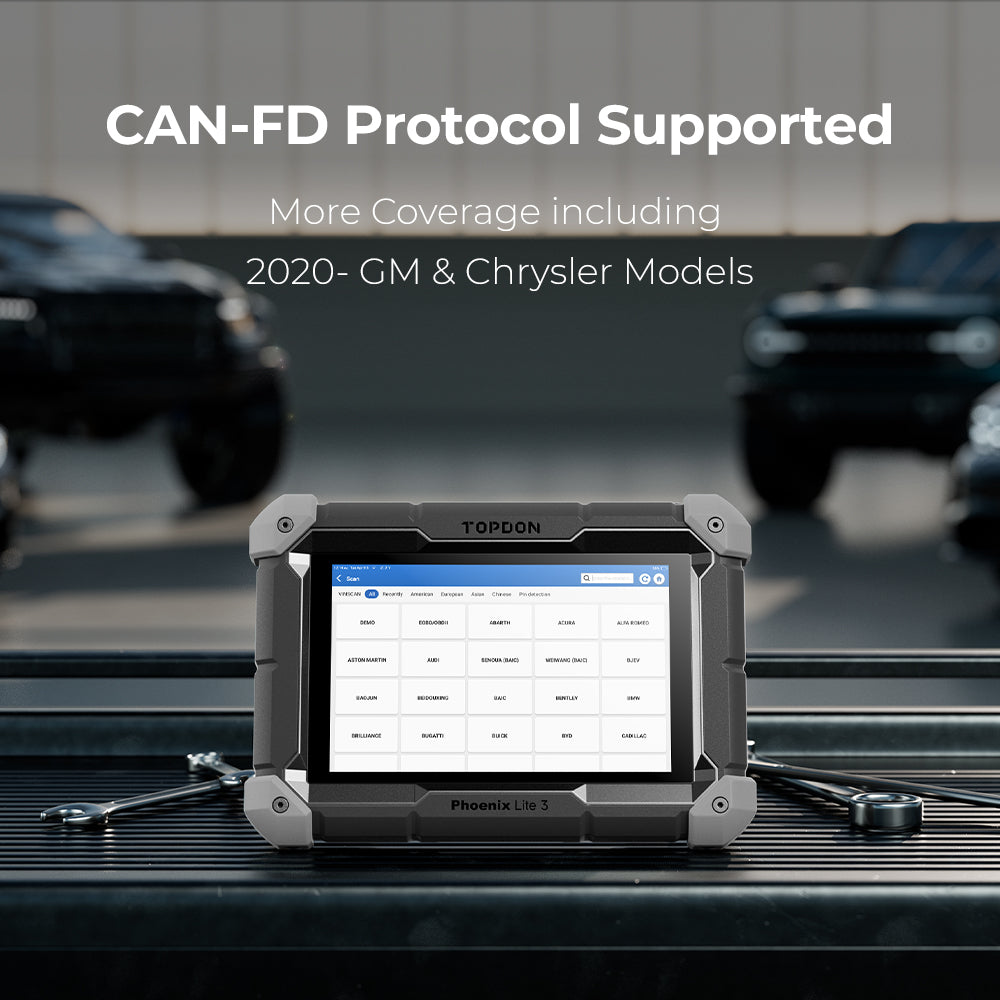

CAN FD support and Bluetooth connection to the supplied VCI.

Hardware

• 8-inch 1280 × 800 LCD
• Quad-core 2.0 GHz processor
• 2 GB RAM / 64 GB storage
• 12,600 mAh battery

Software and Updates

Two years of free software updates are included. Continued updates after that period require a separate software renewal. The interface supports 25 languages: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Traditional Chinese, Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian and Thai.

Package Contents

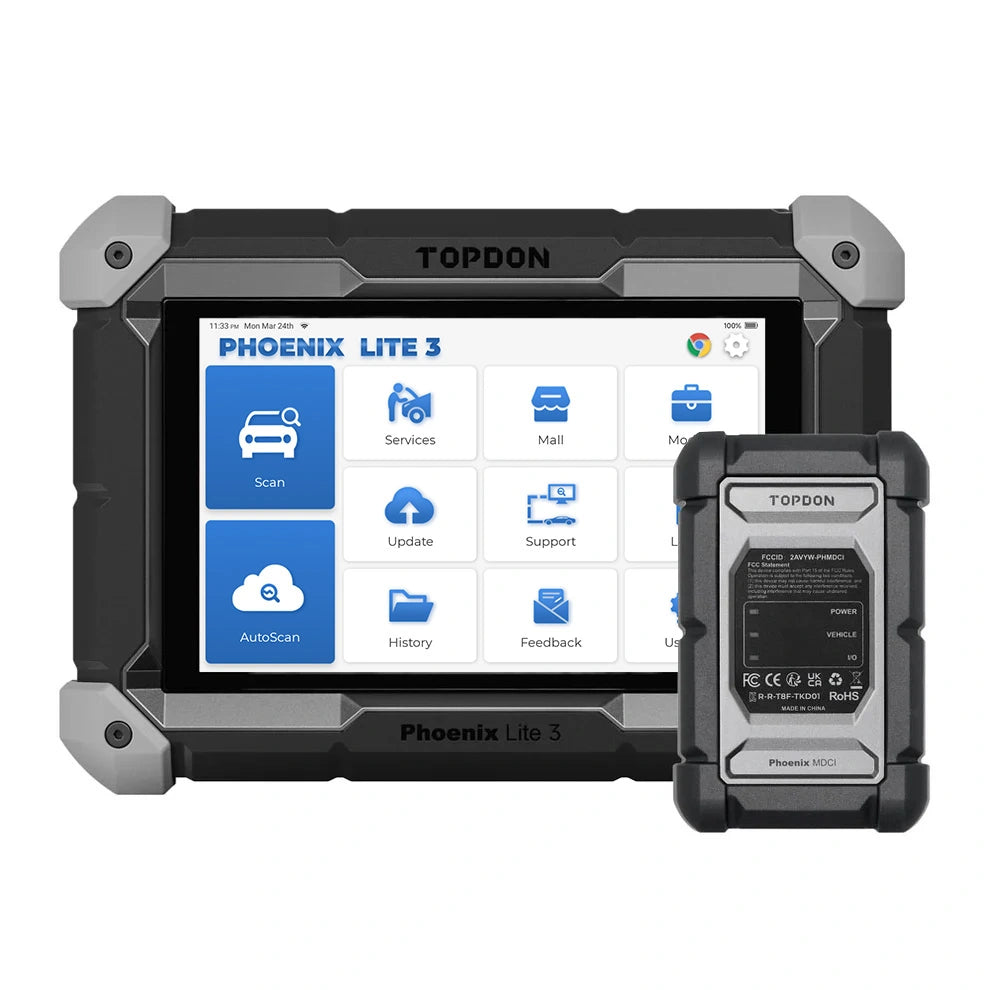

• TOPDON Phoenix Lite 3 tablet
• MDCI VCI dongle
• Battery clamps and cable set
• Cigarette-lighter cable
• Replacement fuses
• Type-C to USB cable
• Power adapter
• OBDI adapter-box transfer cable
• OBDII extension cable
• Ten model-specific adapters: BZ-38, TA-22, TA-17, G/V-12, B-20, CR-6, HA-3, NN-14+16, M/H-12+16 and FT-3
• User manual and package list

Technical Specifications

Tablet operating voltage	9–18 V
Dimensions	258 × 183 × 50.5 mm
Weight	1,184.5 g
Working temperature	0 °C to 50 °C

Function availability depends on the vehicle, software version and applicable authorisation.
