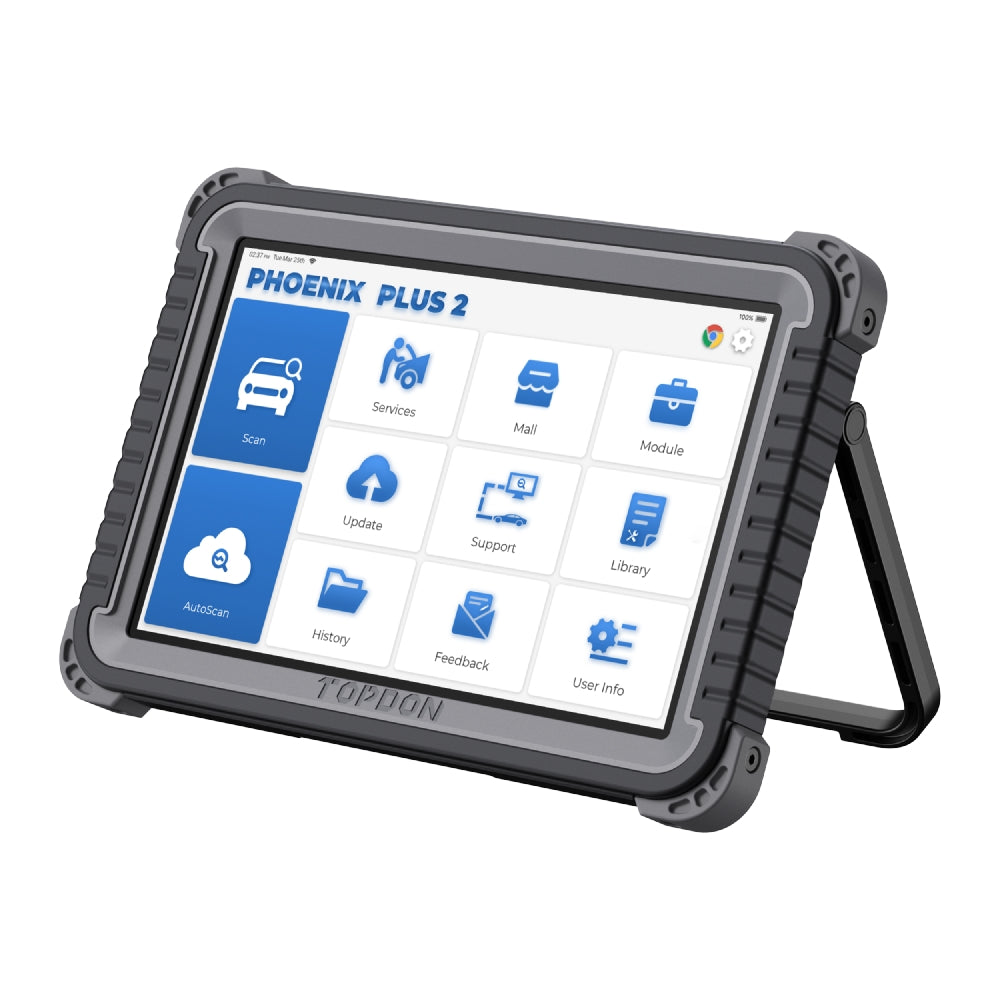

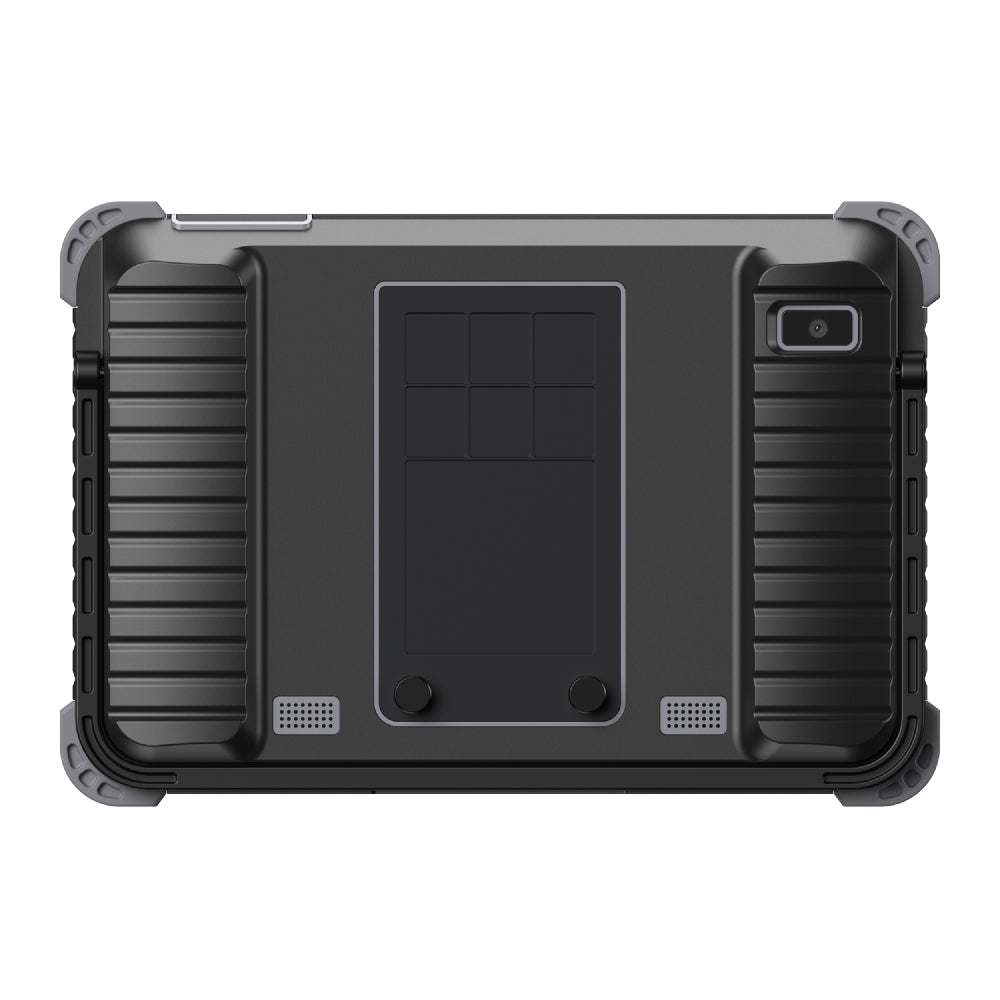

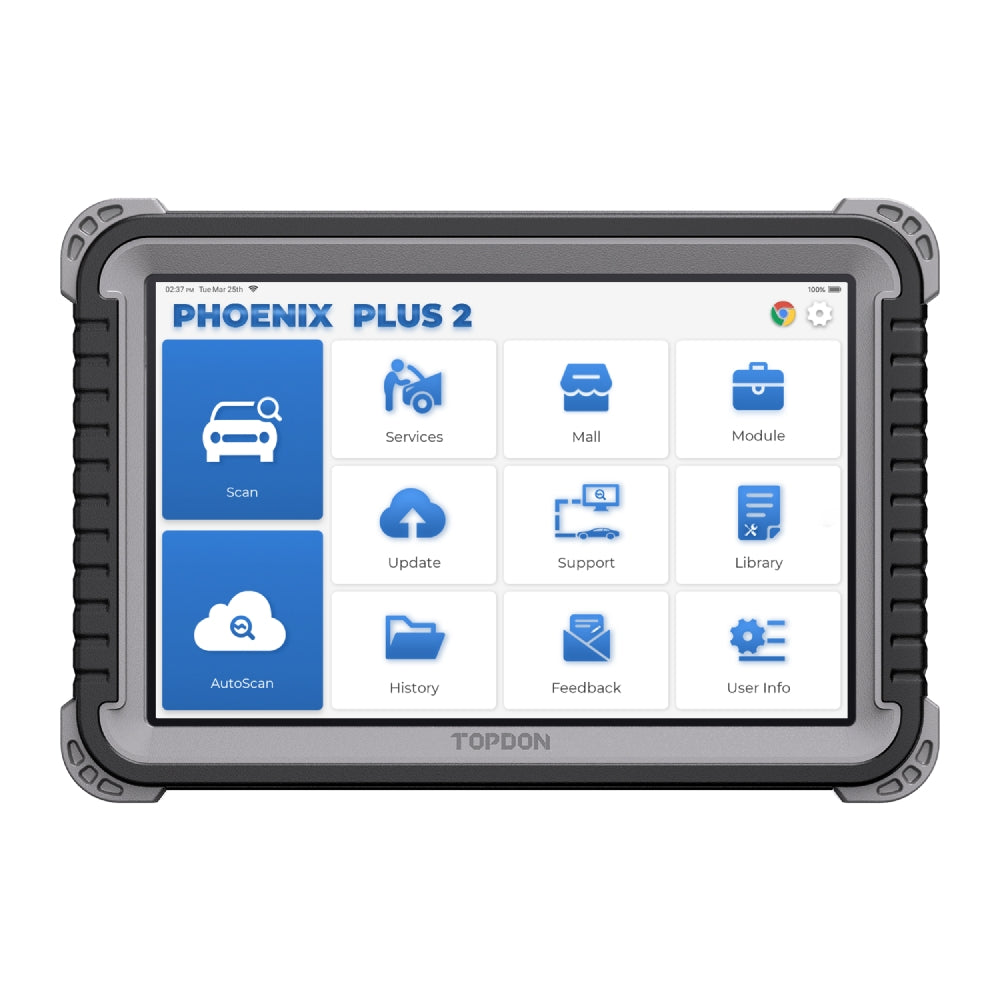

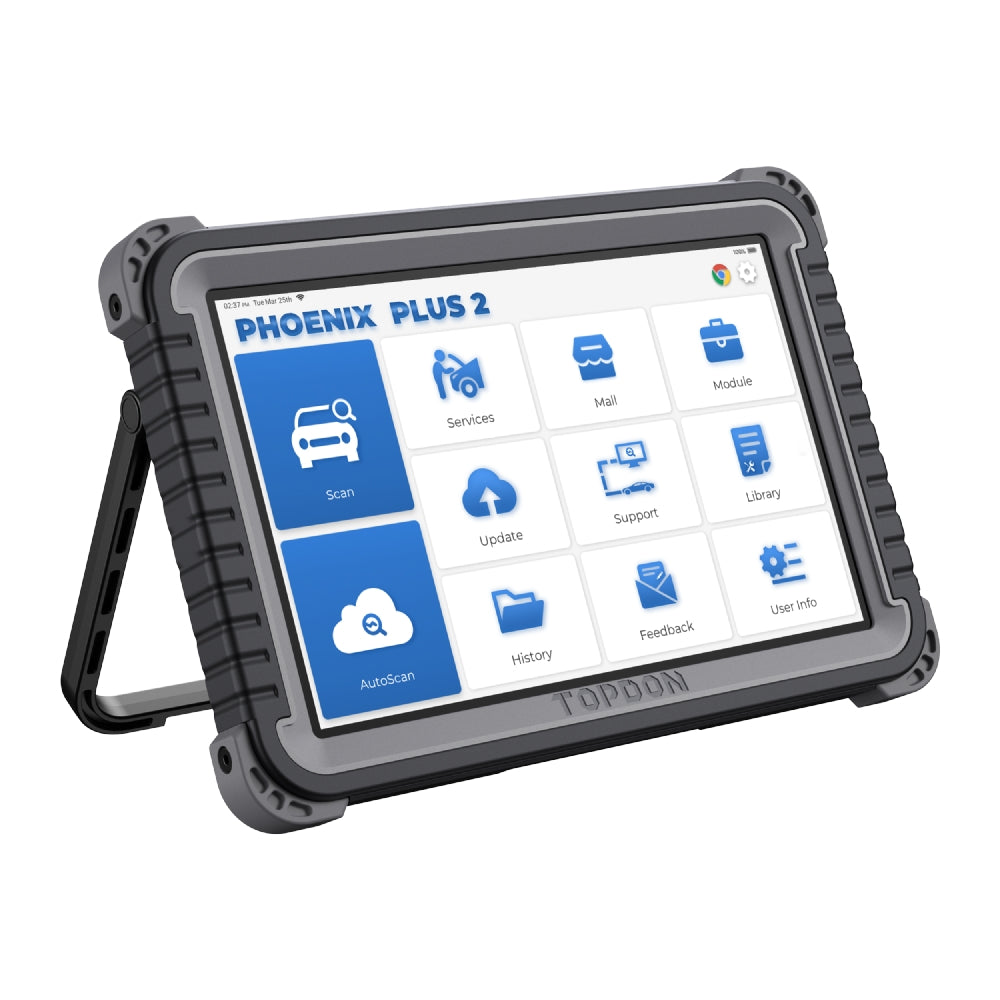

TOPDON Phoenix Plus 2 Professional Full-System Diagnostic Tablet
The TOPDON Phoenix Plus 2 is a professional workshop diagnostic tablet with full-system coverage for 160 vehicle brands, CAN FD communication, topology mapping, bi-directional control and supported ECU and online coding.
Features
- Full-system diagnostics for 160 supported vehicle brands
- CAN FD support
- FCA Secure Gateway access where supported and authorised
- Wireless vehicle communication
- Expandable with supported ADAS, battery-testing, thermal-imaging and oscilloscope modules
Diagnostic Functions
- Full-System Scan
- Read Codes
- Clear Codes
- Live Data

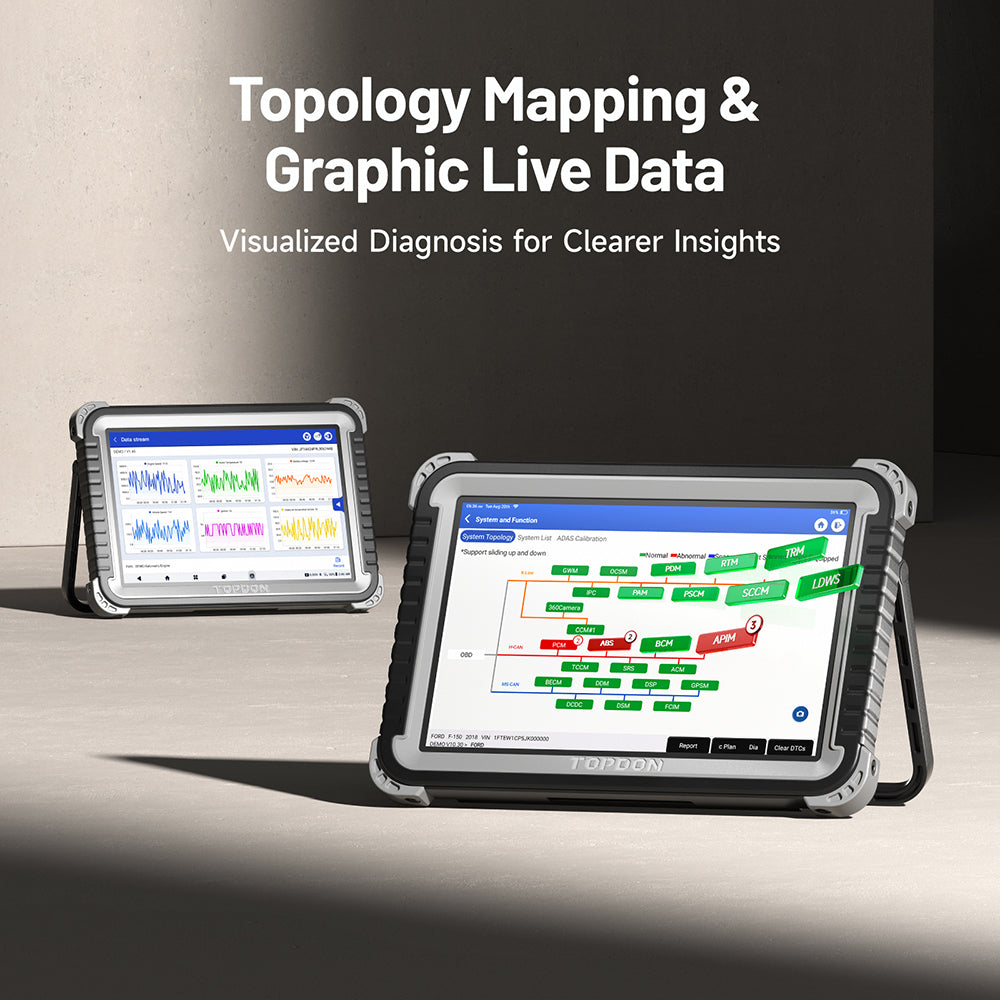

- Topology Mapping
- Bi-directional Active Tests
- ECU Coding and Online Coding on supported vehicles
- AutoVIN
- VAG Guided Functions on supported vehicles
- FCA Secure Gateway Access on supported vehicles
Service Functions
41 maintenance services, including Oil Reset, SAS Reset and Throttle Adaptation. Availability depends on the exact vehicle and active software coverage.
Technical Specifications
| Display | 10.1-inch LCD, 1280 × 800 |
|---|---|
| Processor | Quad-core, 2.0 GHz |
| Operating system | Android 10.0 |
| Memory | 4 GB RAM / 64 GB storage |
| Battery | 12,600 mAh / 3.8 V |
| Operating voltage | 9–18 V |
| Working temperature | 0 °C to 50 °C |
| Storage temperature | −20 °C to 60 °C |
| Dimensions | 277.3 × 190.8 × 44.5 mm |
| Net weight | 1,576 g |
Supported Languages
English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Traditional Chinese, Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish, Czech, Norwegian, Danish, Swedish, Thai, Bulgarian, Indonesian and Cambodian.
Software Updates
Includes 2 years of free software updates.
Package Contents
- Phoenix Plus 2 tablet

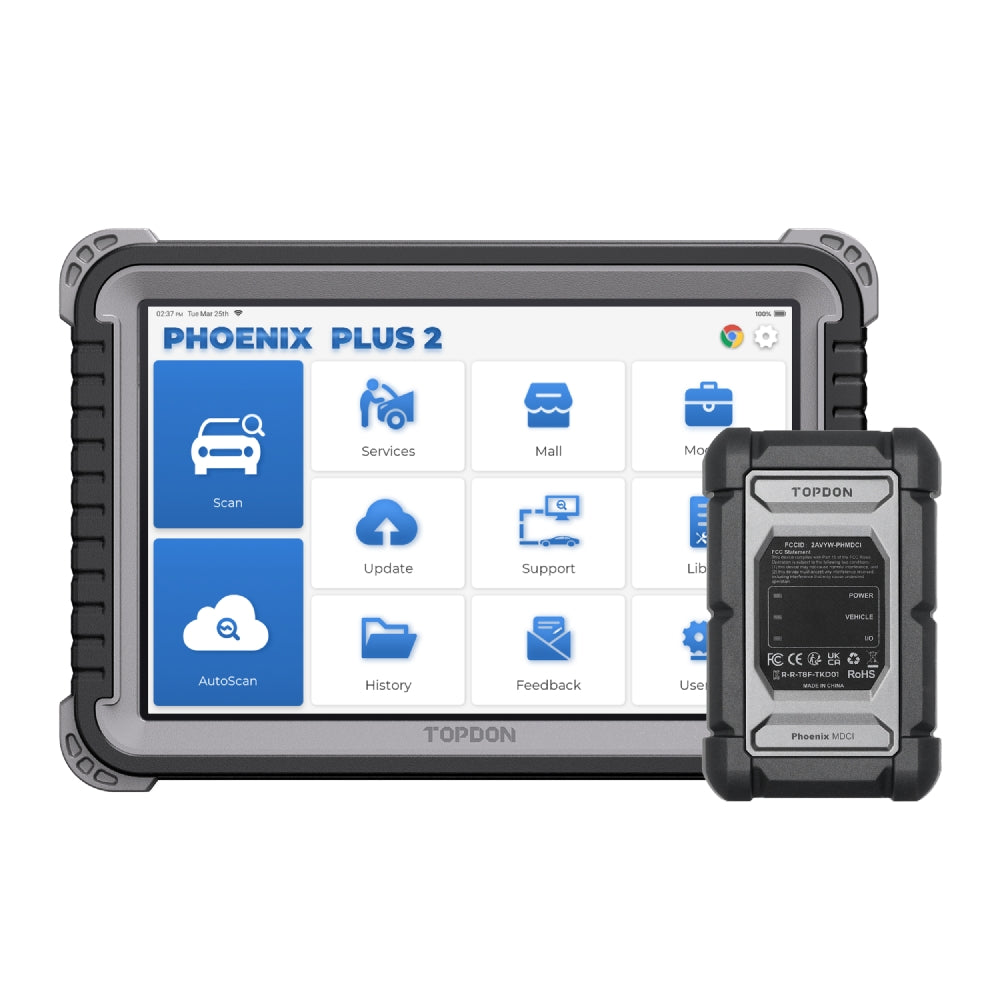

- MDCI dongle
- Battery clamps and cable set
- USB Type-C cable
- OBD I adapter-box transfer cable
- Cigarette-lighter cable
- 2 × fuse (φ6 × 30 mm)
- 4 × fuse (φ5 × 20 mm)
- Power adapter
- OBDII extension cable
- BZ-38 Mercedes-Benz adapter
- TA-17 Toyota adapter
- B-20 BMW adapter
- HA-3 Honda adapter
- M/H-12+16 Mitsubishi/Hyundai adapter
- TA-22 Toyota adapter
- G/V-12 GM/VAZ adapter
- CR-6 Chrysler adapter
- NN-14+16 Nissan adapter
- FT-3 Fiat adapter
- User manual
- Carrying case
Important Information
Vehicle coverage, coding, maintenance functions, secure-gateway access and online services depend on the exact vehicle, model year, region, control unit and active software coverage.
