Description
Overview

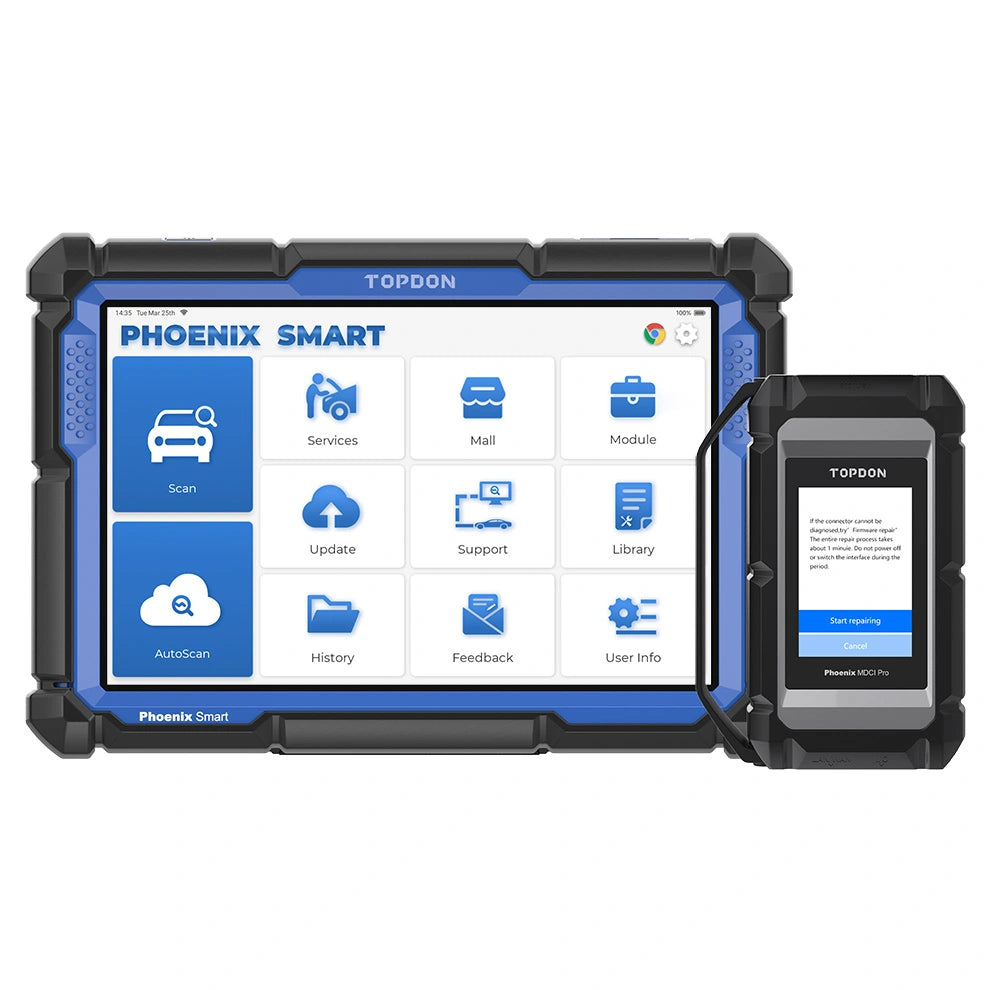

TOPDON Phoenix Smart is a professional 10.1-inch diagnostic tablet designed for comprehensive workshop diagnostics. It combines full-system coverage for 200 vehicle brands with Phoenix MDCI Pro communication, cloud-based programming for 13 supported brands, online coding and ADAS expansion support.
Features

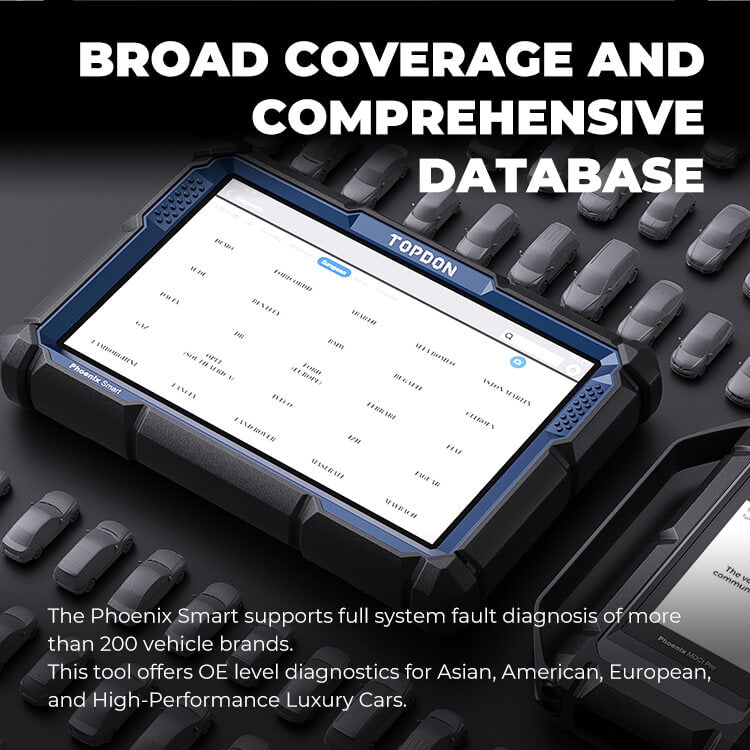

- OE-level full-system diagnostics for more than 200 vehicle brands
- Cloud-based programming for 13 supported vehicle brands
- Online coding for supported Audi, BMW, Porsche and other vehicles
- Phoenix MDCI Pro with CAN FD, DoIP, D-PDU and RP1210 support
- Compatible with the TOPDON Phoenix ADAS Mobile Package
- 10.1-inch HD touchscreen and 12,600 mAh battery
Diagnostic Functions
- Full-System Scan
- Read Codes
- Clear Codes

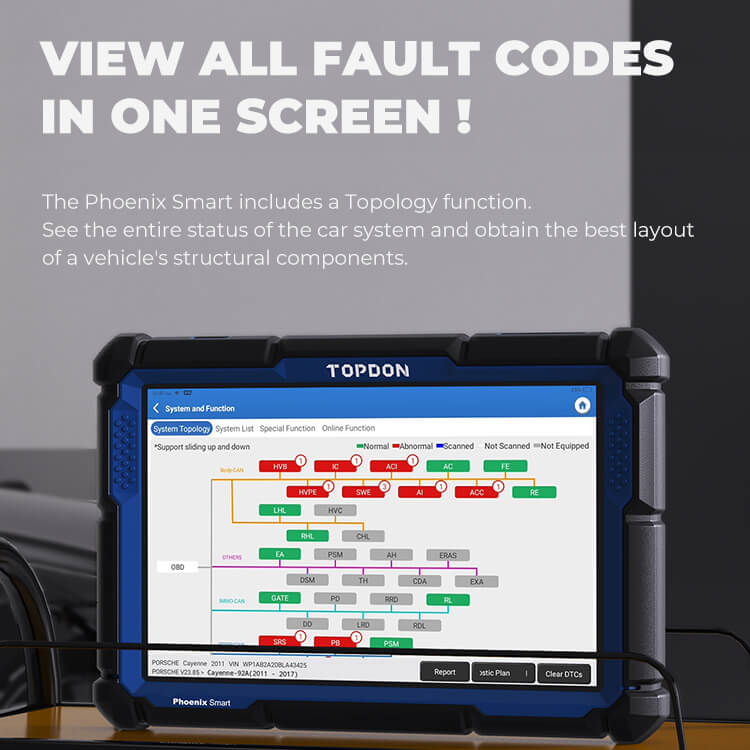

- Topology Mapping

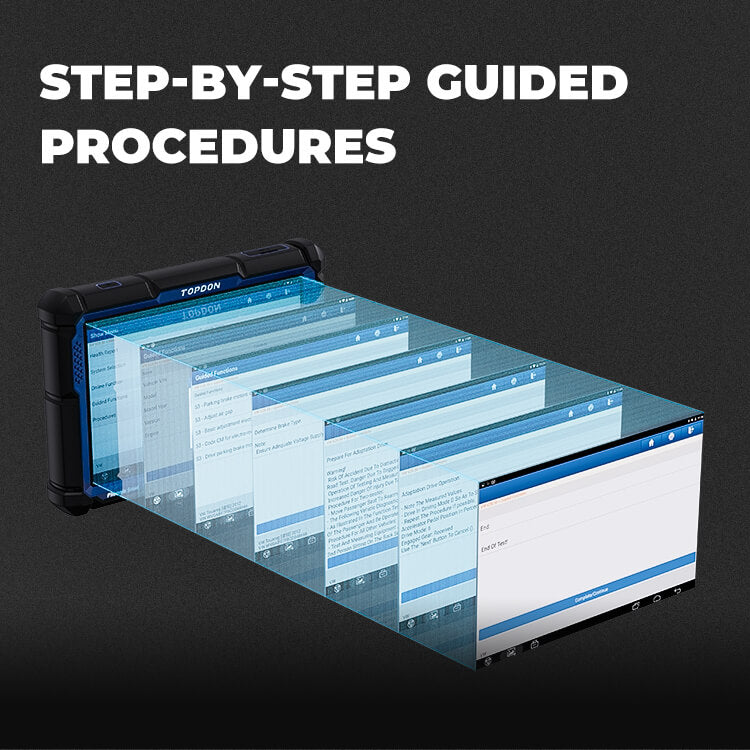

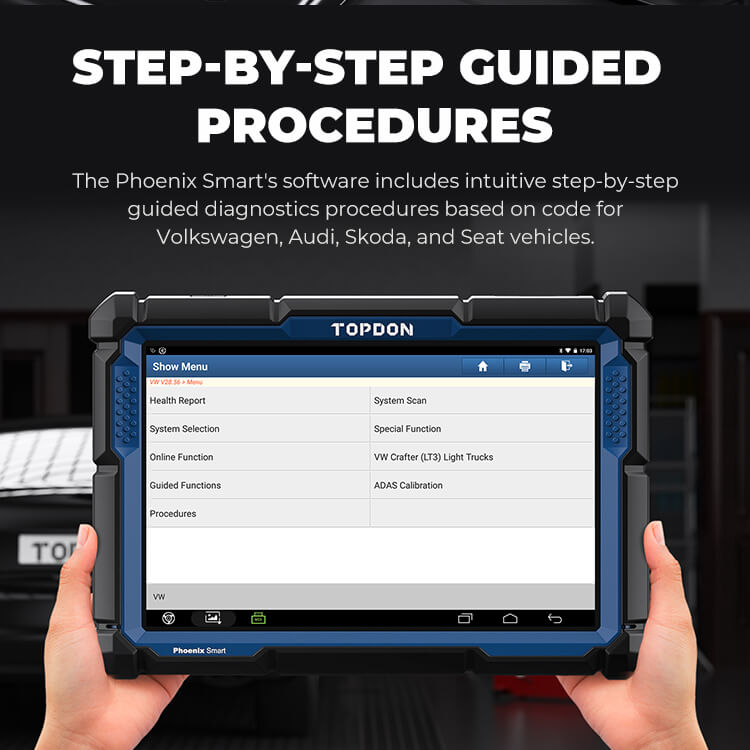

- VAG Guided Functions on supported vehicles
- FCA Secure Gateway Access on supported vehicles
- Cloud-Based ECU Programming for 13 vehicle brands

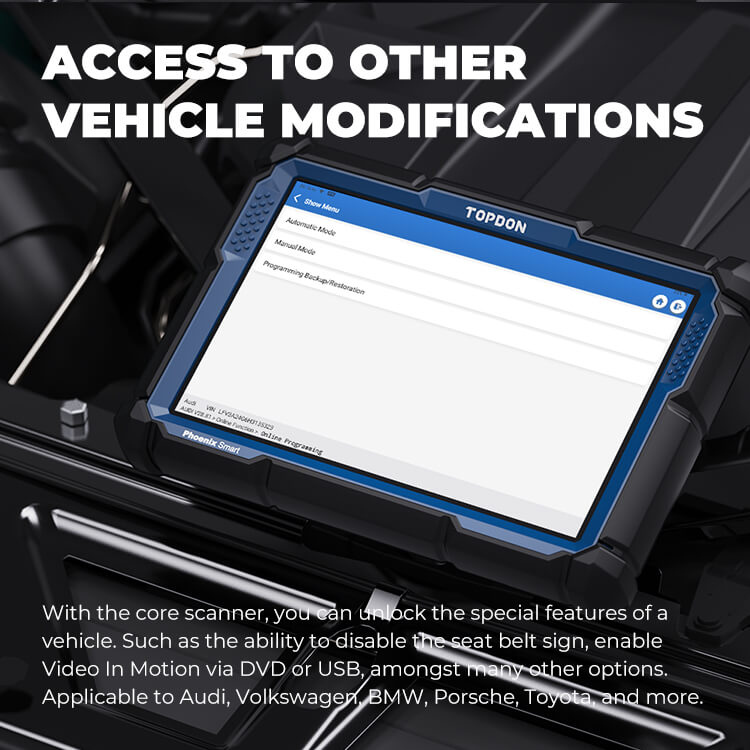

- Online ECU Coding on supported vehicles
Service Functions
Maintenance and special functions on supported vehicles. Availability depends on the exact vehicle and active software coverage.

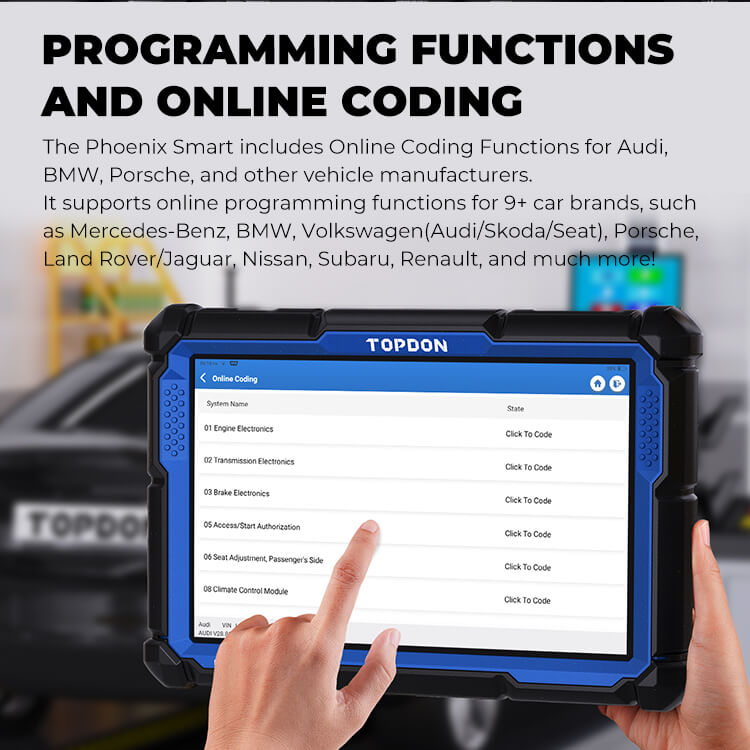

Programming & Coding
Official TOPDON information lists cloud-based programming support for 13 brands, including Mercedes-Benz, BMW, Volkswagen Group vehicles, Porsche, Jaguar/Land Rover, Nissan, Subaru, Renault and Hyundai. Exact programming and coding availability depends on the vehicle, model year, market and control unit.
Technical Specifications
| Display | 10.1-inch LCD touchscreen, 1280 × 800 |
|---|---|
| Processor | Quad-core, 2.0 GHz |
| Operating system | Android 10.0 |
| Memory | 4 GB RAM / 128 GB storage |
| Battery | 12,600 mAh / 3.8 V |
| Operating voltage | 9–18 V |
| Dimensions | 278 × 191 × 48 mm |
Phoenix MDCI Pro
| Processor | Cortex-A7 + Cortex-M7 dual processor |
|---|---|
| Operating system | Linux |
| Memory | 256 MB RAM / 8 GB storage |
| Display | 3.97-inch TFT, 320 × 480 |
| Wireless connection | 2.4 GHz / 5 GHz Wi-Fi |
| Operating voltage | DC 9–36 V |
| Protocols | CAN FD, DoIP, D-PDU, RP1210 |
Supported Languages
24 languages: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Traditional Chinese, Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish and Norwegian.
Software and Updates
Includes two years of free software updates, as stated by TOPDON. Continued updates after the included period may require a paid renewal.
Package Contents
- TOPDON Phoenix Smart
- Phoenix MDCI Pro VCI
- OBDI adapter-box transfer cable
- OBDII extension cable
- Cigarette-lighter cable
- USB Type-C cable
- Battery clamp and cable set
- User manual
- 10-piece non-16-pin adapter cable kit
- Four 5 × 20 mm fuses
- Two 6 × 30 mm fuses
- USB Type-A to Type-B cable
Important Information
Vehicle coverage, programming, coding, ADAS functions and diagnostic capabilities depend on vehicle make, model, model year, market, installed control units, software version and active software package. Check official TOPDON vehicle coverage when a specific function is required.
