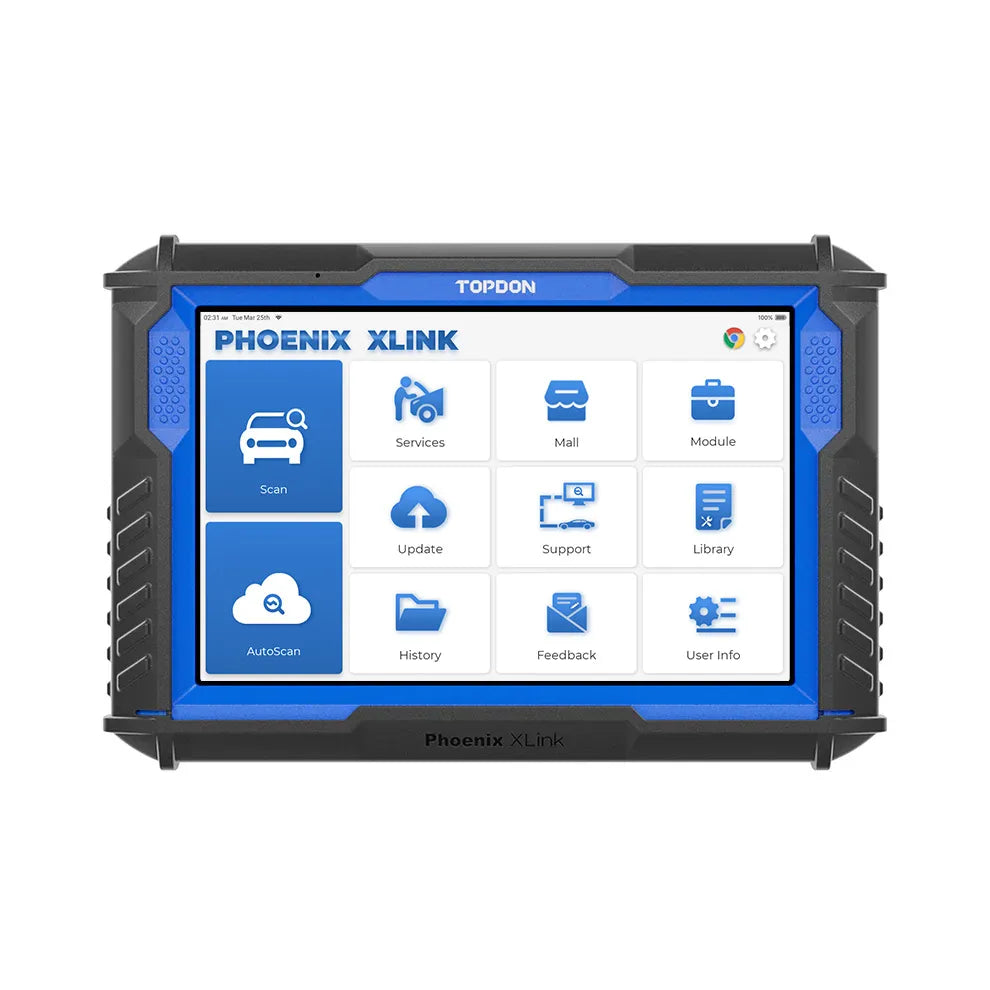

TOPDON Phoenix XLink Professional Diagnostic & Programming Tablet

Description

TOPDON Phoenix XLink Professional Diagnostic & Programming Tablet

The TOPDON Phoenix XLink is a professional diagnostic platform for workshop use. It combines full-system diagnostics with bi-directional control, topology mapping, 41 maintenance functions and supported cloud programming and online coding.

Features

• Full-system diagnostics for 160 vehicle models
• CAN FD and DoIP protocol support
• Multi-system simultaneous high-speed scanning through CAN Bus multi-thread communication
• Optional heavy-duty software support

Diagnostic Functions

• Full-System Scan for 160 vehicle models
• Read Codes
• Clear Codes
• Live Data: compare four streams
• Bi-directional Active Tests

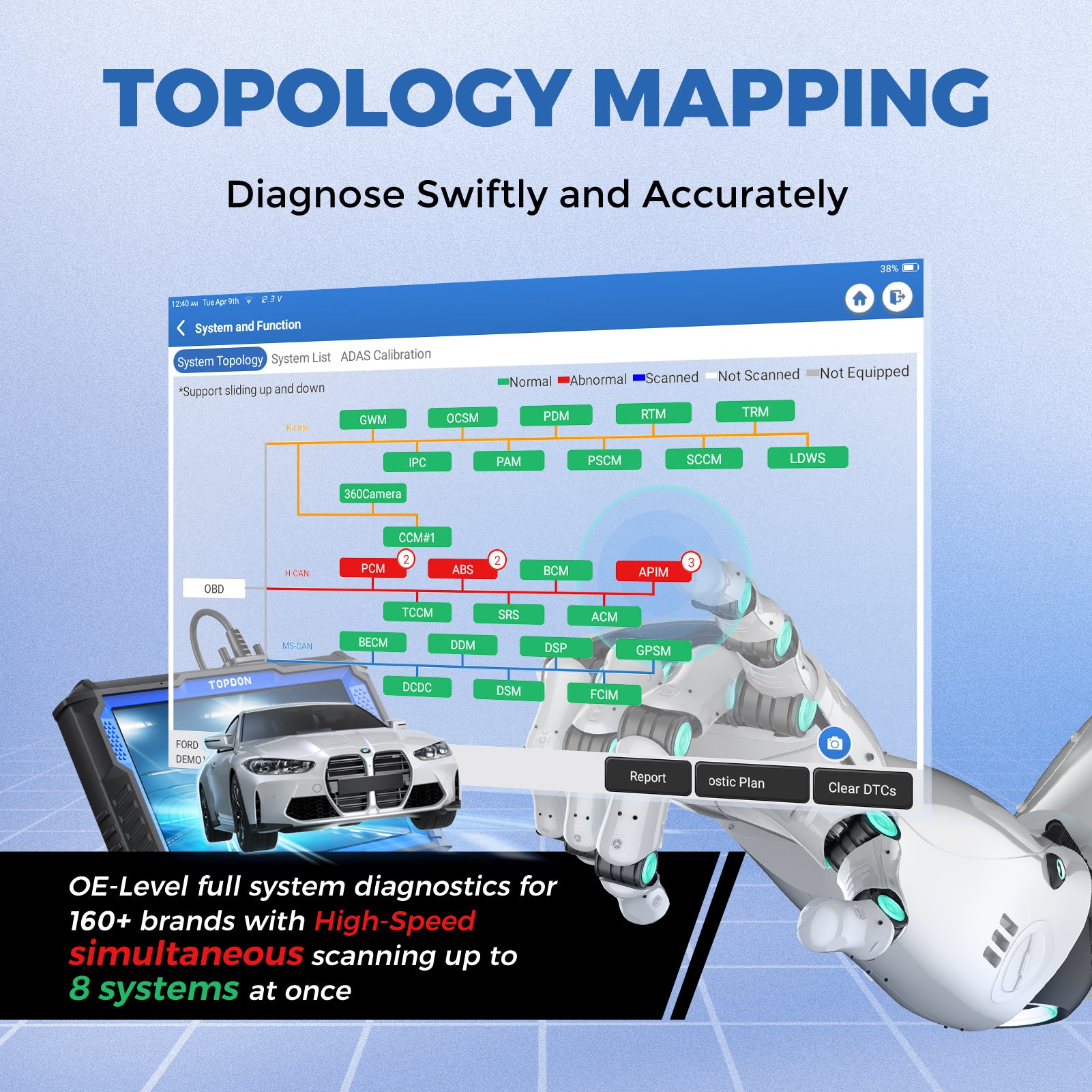

• Topology Mapping
• AutoVIN
• Multi-System Scan of up to eight systems at once
• Cloud-Based ECU Programming for supported BMW, Mercedes-Benz and Audi vehicles
• Online ECU Coding on supported vehicles

Service Functions

41 maintenance functions, including Oil Reset, SAS Reset, Brake Reset, BMS Reset, DPF Service and ABS Bleeding. Availability depends on the exact vehicle and active software coverage.

Cloud Programming

TOPDON lists cloud-based programming support for selected BMW, Mercedes-Benz and Audi vehicles. Availability depends on the exact vehicle, control unit, region and active software coverage.

Technical Specifications

Supported Languages

English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Traditional Chinese, Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish and Czech.

Software Updates

Includes 2 years of free software updates.

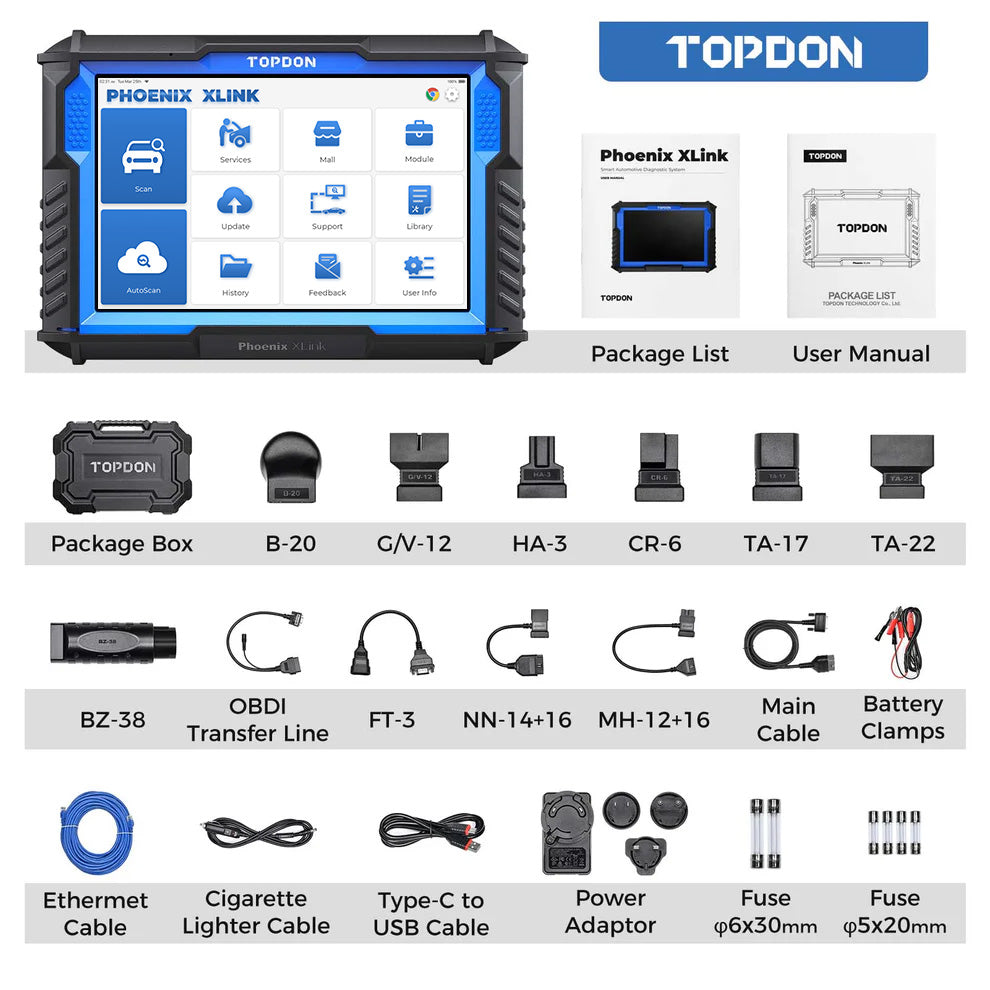

Package Contents

• Phoenix XLink tablet
• 16-pin diagnostic cable, 2.0
• Battery clamps
• Cigarette-lighter cable
• 4 × fuse (φ5 × 20 mm)
• 2 × fuse (φ6 × 30 mm)
• USB Type-C cable
• OBD I adapter-box transfer cable
• NN-14+16 Nissan adapter
• FT-3 Fiat adapter
• BZ-38 Mercedes-Benz adapter
• TA-22 Toyota adapter
• TA-17 Toyota adapter
• G/V-12 GM/VAZ adapter
• B-20 BMW adapter
• CR-6 Chrysler adapter
• HA-3 Honda adapter
• M/H-12+16 Mitsubishi/Hyundai adapter
• Power adapter
• Ethernet cable
• User manual

Important Information

Vehicle coverage, programming, coding, maintenance functions and online services depend on the exact vehicle, model year, region, control unit and active software coverage. Optional heavy-duty software is not included unless explicitly stated.
